Asetek Forte base

Asetek Forte Direct Drive Wheelbase 18Nm

0 Reviews
Price per unit
Limited in stock
Asetek Quick Release
Asetek Quick Release
€ 159,00
remove add
Asetek Forte

Product description

Asetek Forte Direct Drive Wheelbase 18 Nm

Asetek Forte Tech Specs

•             Exquisite, radical, and minimalistic Danish industrial design

•             Made in Denmark

•             Anodized extruded aluminum housing

•             Direct Drive Force Feedback

•             Peak Torque of 18Nm

•             Encoder resolution: 22bit / 0,000085 degrees / 4.000.000 steps

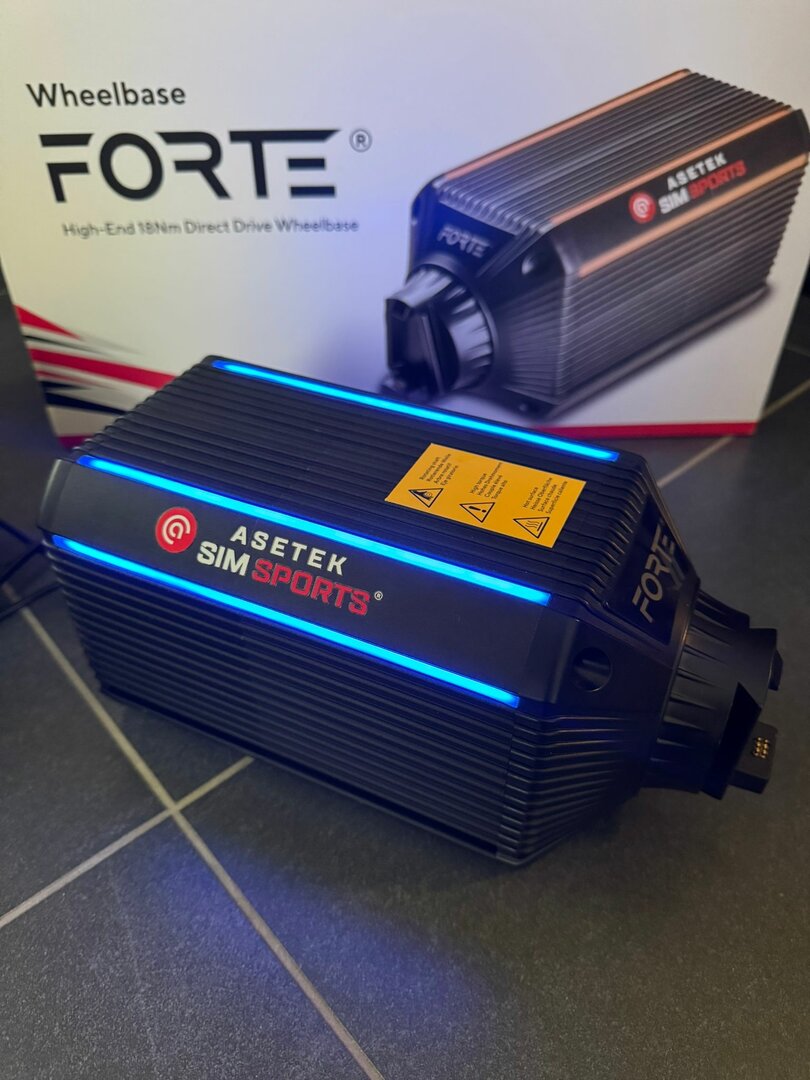

•             4x21 Programmable RGB LEDs that can be adjusted, dimmed or completely turned off in Asetek SimSports® RaceHub™

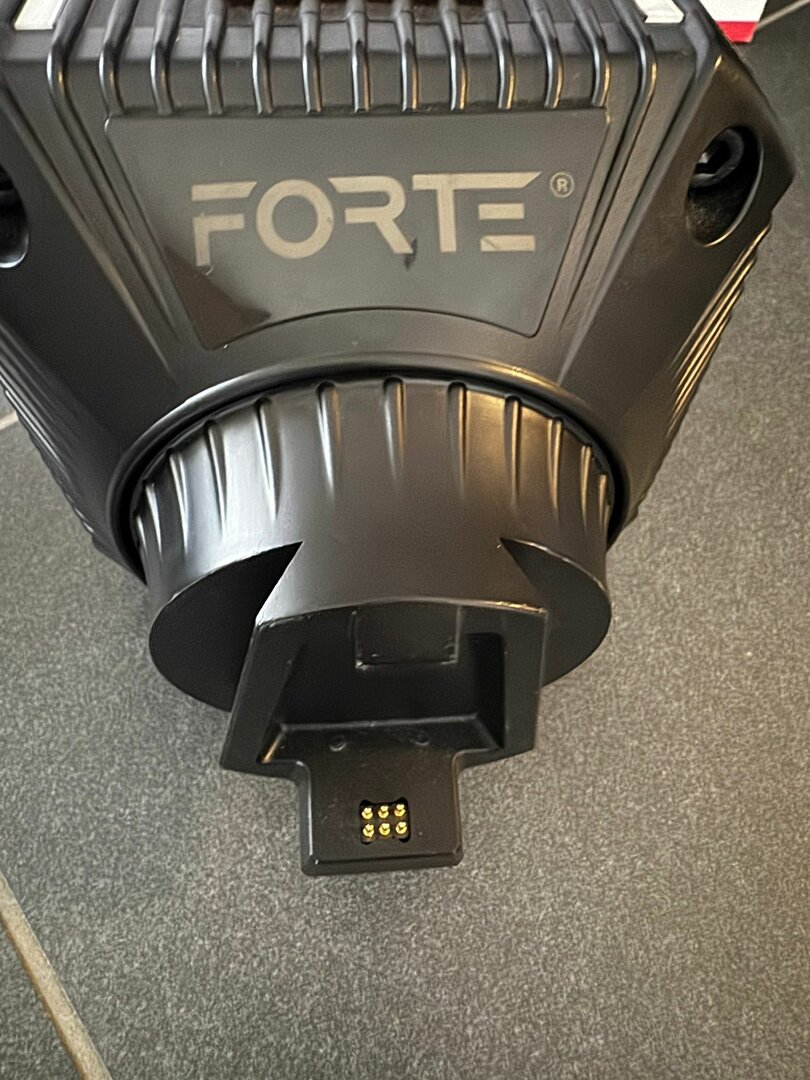

•             Asetek Simsports® Quick Release

•             400w power supply

•             Slipring designed and tested to +200.000.000 activations

Software Features

•             Setup and save profile presets – Customize your settings to fit your car, track and conditions

•             Adjust steering range, bumpstop hardness and bumpstop range

•             Adjust Overall Force, Basic Damping and Basic Smoothing


Height: 133mm

Width: 132mm

Length (Incl. Quick Release): 293mm

Weight: 8.5kg

 Looking for Asetek software or manuals? Check our help center!

Product specification

Asetek bases

Asetek QR Wheelbase side only
Max Torque 18 Nm
Slew Rate 6,7 Nm/ms
Torque Off Button Included
Power On/Off Button Included
Power Supply 400 W
Dimensions 133 mm x 132 mm x 293 mm

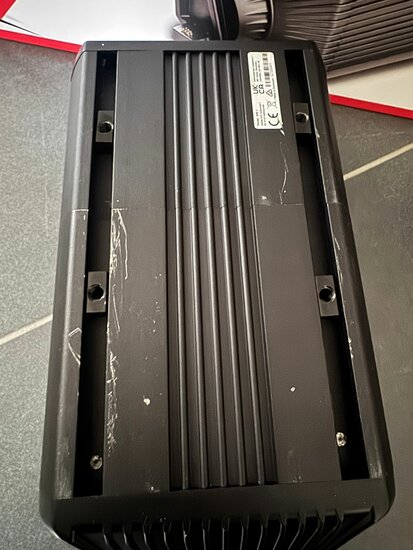

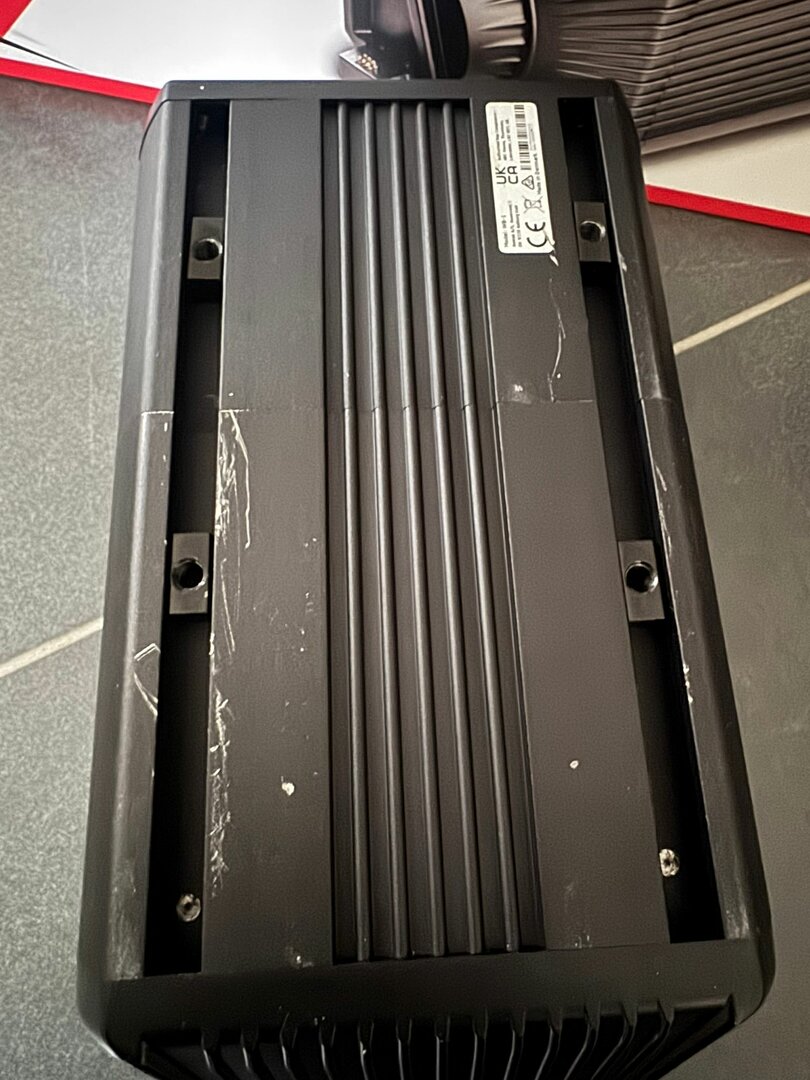

Mounting Holes 4x M6 threaded T-nuts
Mounting Hole Pattern Width 87 mm
Mounting Hole Pattern Length Variable length 30 mm to 160 mm
Weight 8,5 kg
Operating Temperature 0°C to 40°C, room temperature
Built-in 5 ports USB hub
ARGB Led Strips 4
