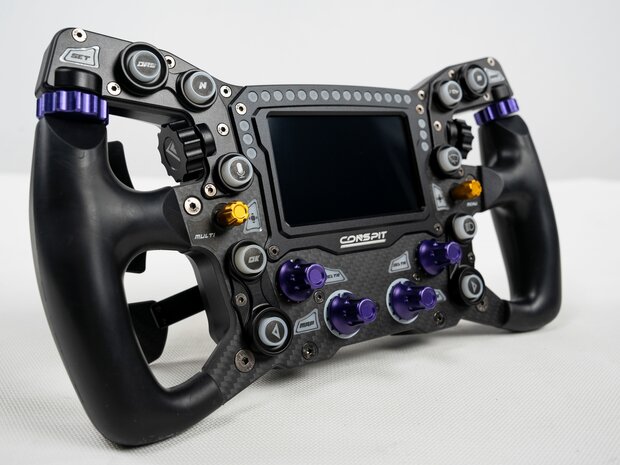

CONSPIT MAX01 Wheel

Comprehensive Race Data Display

Fully Adjustable Integrated Dashboard

• Features a high-resolution 4-inch touch display and 21 programmable RGB dash lights.
• Fully compatible with SimHub, providing precise indications and endless race data display possibilities.
• Offering with custom SimHub Dash designed by CONSPIT, allowing seamless integration of dashboard pages with CONSPIT's hardware design style.
• Constructed with a full aluminum alloy dashboard frame, with additional flange portions to protect the screen.

RGB Buttons & Function Lights Area

• 10 RGB button modules with responsive and precise tactile feedback.
• 8 RGB function light zones to indicate vehicle status, functional information, or track/sector data.
• The color of all button lights and function lights, as well as the race data telemetry feedback, can be independently customized.

Robust and Durable Overall Structure

• The front panel is made of 5mm thick 100% real carbon fiber, paired with a one-piece aluminum alloy body. The stress-bearing components, connection points, and cutouts are all optimized for mechanical topology, ensuring absolute rigidity when using high-torque DD wheels.
• Rotary knobs, thumb encoders, and button surrounds on the panel are all made from metal for a premium, uncompromising feel.

Expanded Control Component Design

Innovative Rear Thumb Push Button

• Inspired by real-world racing design—conveniently located behind the steering wheel, a pair of quick-access buttons further extend the control boundaries for racing.

Open-structure Thumb Encoder

• Unlike traditional thumb encoders hidden inside the casing, the purple thumb wheels feature an open design, allowing the driver to operate them with both the thumb and the index finger from behind, enhancing control interaction efficiency.
•  Freed from its enclosure, this pair of encoders also visually integrates into the steering wheel's profile, adding a unique aesthetic touch

Paddles – Interactive Sensation

• Shift paddle modules meticulously crafted to achieve the perfect balance between silence and tactile feedback.
• Standard dual-clutch paddles with a firm feel, assisting drivers with confident launch control on every start.

Optimal Grip for the 310mm Grip-to-Grip Distance

• Ergonomically designed for the 310mm Grip-to-Grip Distance, ensuring a comfortable and secure grip for long-distance driving.
• Hand grips are made from highly durable TPU material, with surfaces molded from precision dies to prevent shedding or fading.

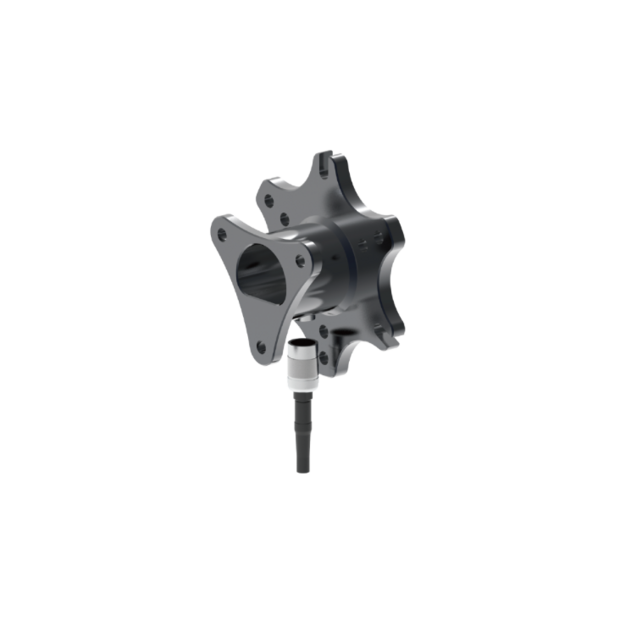

Quick-Con Adapter and Independent USB Connection

• Standard 70mm PCD adapter, compatible with all brand wheelbases.
• Military-grade quick connectors on the adapter ensure stable connections.
• Includes a detachable, easy-to-remove coiled cable with direct USB connection.

Conspit Link 2.0 Advanced Control Features

Quick calibration of shift paddles/clutch paddles and advanced control functions can be done via Conspit Link 2.0 without the need for third-party software:

• Dual-mode Rotary Knob: The rotary knob can be set as a rotary switch or encoder.
• Programmable Encoder (P-ENC): The rotary knob’s gear positions can shift the button mappings of the two purple thumb encoders, allowing multiple in-car adjustments on the same thumb encoder without additional physical encoders. For example, when the rotary knob is in position 2, the thumb encoder in-game can be mapped to brake bias; in position 3, the same thumb encoder can control the TC level.
• Rotary Macro: One of the lower rotary knobs can be set to control the position combinations of the two upper ones, enabling rapid switching to preset vehicle control maps, such as quickly changing both the deploy mode and throttle shape simultaneously.

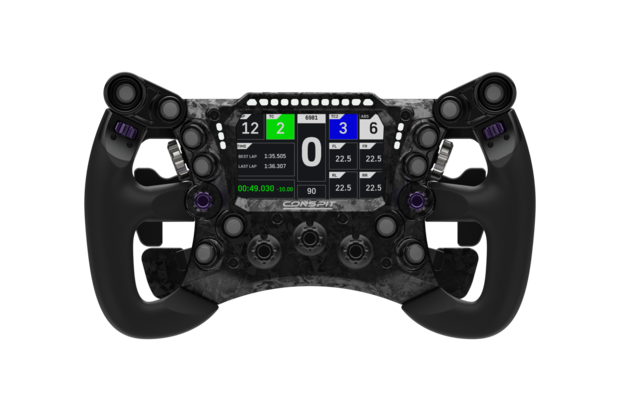

CONSPIT 290 GP Formula Wheel

The 290 GP is a next-generation simulation steering wheel, embodying CONSPIT’s “N+1” product philosophy. This wheel transcends the typical flat design constraints of similar products, employing a unique 3D ergonomic approach that redefines the shape and functionality of Formula steering wheels. It introduces numerous structural innovations to push the boundaries of high-quality simulated driving experiences.

Constructed with a molded carbon fiber front panel and a high-strength aluminum alloy body, the 290 GP features a custom 4.3” LCD display, RGB modular ergonomic buttons, dual clutch paddles, a rocker-style paddle shifter set, four thumbwheels, three 12-position rotary switches, and two seven-way joysticks.

Outstanding Features:

• Lightweight Yet Rigid: The carbon fiber front panel, combined with an aluminum alloy rear cover, ensures a lightweight design at 1350g while maintaining unprecedented structural rigidity, even when paired with high-torque direct drive bases.

• Breaking Flat Design Limits: The 290 GP’s design fully embraces CONSPIT’s aesthetic and structural optimizations in three dimensions, providing a more dynamic and visually appealing experience.

• Innovative Ergonomics: To give drivers a competitive edge, the 290 GP’s ergonomic attention to detail ensures superior comfort and performance during long sessions.

• HOTAS-Inspired Control Distribution: Inspired by HOTAS (Hands On Throttle-And-Stick) systems in aviation, the wheel maximizes thumb-accessible control areas using a 3D component stacking design.

• CONSPIT Space Buttons: Button placement is determined by the natural position of the thumb, creating a specialized design in space that increases operational density, making every action more intuitive and effortless.

• Enduro Grips: Designed for endurance racing, the 290 GP’s Enduro grips offer exceptional durability and ergonomic comfort, reducing grip fatigue during long races.

• Durable Materials: The grips are made from a specially modified TPU material, precision-molded in a double-layer injection process, offering superior wear resistance and anti-aging properties compared to the TPE materials commonly used in most steering wheels.

• Thump-Tick Thumbwheel Structure (Patented): CONSPIT’s internal “Thump-Tick” tactile feedback structure optimizes the thumbwheel’s efficiency, enhancing interaction during racing.

• Magnetic “MagFlip” Rocker Arm Shift Camset (Patented): Derived from real Formula racing steering wheels, this mechanism allows for both push and pull shifting, providing robust tactile feedback with a magnetic cam structure.

• Ready-to-Use Instrument Panel: Fully integrated with a high-resolution 4.3” display (480x800 resolution, 500nit brightness, 60fps refresh rate), the wheel displays vital telemetry data with various sim-racing specific instrument pages.

• Quick Release CDP: Unlike common single-locking ball-type quick releases, the CDP features a pin + ball design inspired by real Formula wheels, ensuring zero play even after extended use.

Specifications:

• Display: 4.3”, 854x480 pixels
• Indicators: 18 RGB LED lights
• Size: 40 x 30 x 16 cm
• Weight: 1400g (without adapter and QR)
• Grip Size: 290mm
• Front Panel Material: Carbon Fiber
• Main Material: Aluminum Alloy
• Buttons: 12 RGB buttons
• Clutch Cams: 2 pairs, rocker type
• Shift Cams: 2 pairs, rocker type
• Additional Controls: 4 encoders, 3 rotary switches
• Mounting: 50mm M5 *3
• Platform: Windows PC
• Connection: USB cable
• Software: Conspit Link 2.0

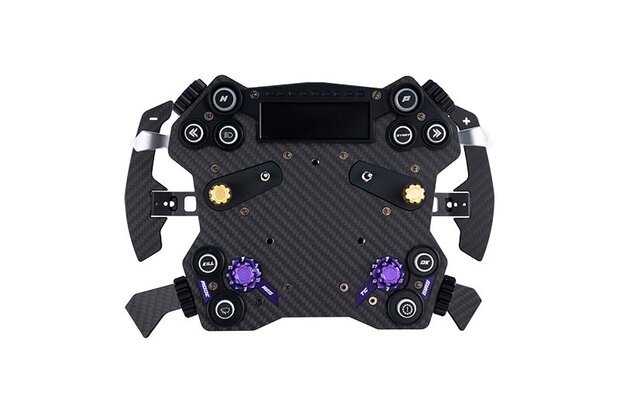

CONSPIT H.AO HUB

Product Description: Introducing the CONSPIT H.AO HUB, a single hub for all your steering wheels, offering innovative style and maximum functionality at your fingertips. Encased in an all-carbon-fiber shell, the H.AO HUB is engineered for stiffness, durability, and lightness, mirroring the high standards of real racing car steering wheels. Unlike fiber-reinforced injection-molded solutions, this hub features a true all-carbon-fiber construction.

Key Features:

• Integrated 2.99-Inch Display: Provides comprehensive information and allows for quick switching between styles, enhancing your racing experience.
• Carbon-Fiber Case: Manufactured using a carbon fiber prepreg molding process, ensuring maximum stiffness and durability while keeping the weight minimal.
• LED RPM Indicator: Keeps you informed about your engine's performance in real-time.

Functional Details:

• Buttons and Encoders:
  • 10 buttons
  • 4 encoders
  • 2 dual mod encoders
• Joystick and Switches:
  • 2 removable 7-position joysticks
  • 2 removable switches
• Paddles:
  • 2 dual clutch paddles
  • 2 paddle shifters
  • 2 configurable paddles

Optional Steering Wheels:

• Compatible with Conspit steering wheels: RX320, DX320, CX320

Benefits:

• Enhanced Functionality: With numerous buttons, encoders, and customizable paddles, the H.AO HUB allows for precise control and flexibility during races.
• Durable and Lightweight: The all-carbon-fiber construction ensures a lightweight yet durable hub, providing a realistic racing feel without adding unnecessary weight.
• Comprehensive Display: The integrated display provides vital information at a glance, improving your situational awareness and overall racing performance.

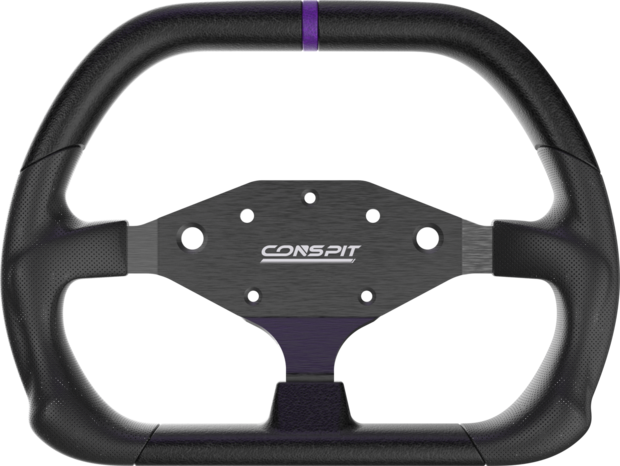

Conspit DX320 Steering Wheel Rim

The Conspit DX320 is a 320mm diameter D-shaped steering wheel designed for sim racing enthusiasts. This wheel is part of the Conspit H.AO series and offers a combination of advanced features and high-quality materials to enhance the racing simulation experience.

Key Features:

1. Diameter and Construction:

   • The DX320 has a diameter of 320mm, offering a realistic and comfortable feel for sim racing.

   • The wheel is covered in high-quality synthetic leather with perforated sections inside the grips for enhanced handling and comfort. The single-piece leather wrap adds to its durability and aesthetic appeal.

2. Design Details:

   • Features blue stitching and a blue top marker, adding a distinctive and sporty look.

   • The base plate includes a central white logo and a black finish, maintaining a sleek and professional appearance similar to other models in the Conspit series.

3. Included in the Kit:

   • DX320 steering wheel.

   • USB connection cable.

   • Mounting hardware for quick and easy installation

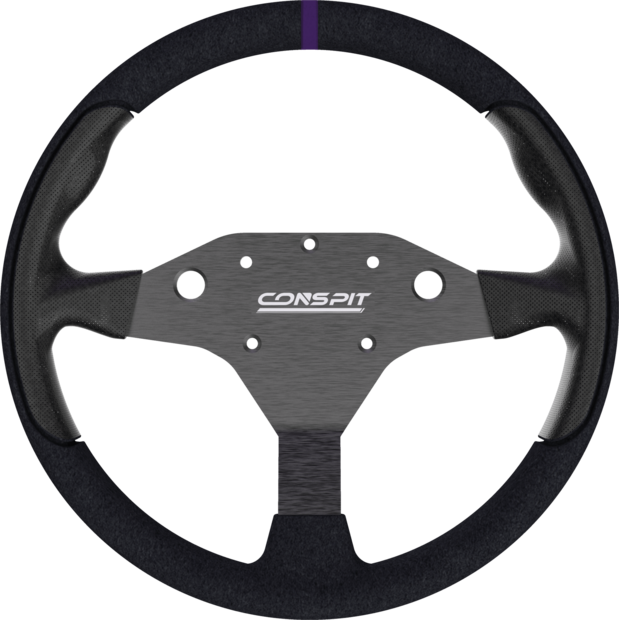

Conspit RX320 Steering Wheel Rim

The Conspit RX320 is a 320mm diameter round steering wheel designed for sim racing enthusiasts. This wheel is part of the Conspit H.AO series and offers a combination of advanced features and high-quality materials to enhance the racing simulation experience.

Key Features:

1. Diameter and Construction:

   • The RX320 has a diameter of 320mm, offering a realistic and comfortable feel for sim racing.

   • The wheel is covered in high-quality synthetic leather with perforated sections inside the grips for enhanced handling and comfort. The single-piece leather wrap adds to its durability and aesthetic appeal.

2. Design Details:

   • Features blue stitching and a blue top marker, adding a distinctive and sporty look.

   • The base plate includes a central white logo and a black finish, maintaining a sleek and professional appearance similar to other models in the Conspit series.

3. Included in the Kit:

   • RX320 steering wheel.

   • USB connection cable.

   • Mounting hardware for quick and easy installation

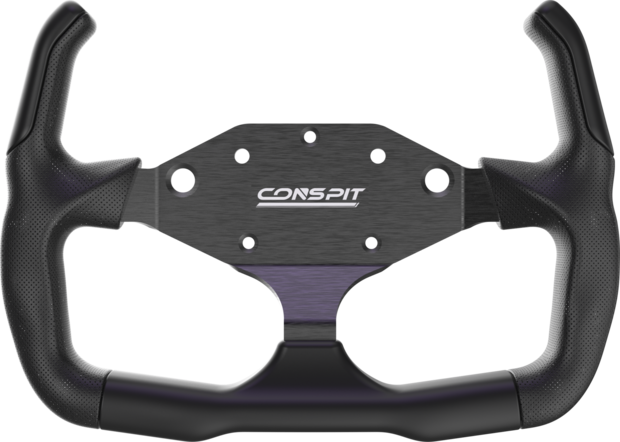

Conspit CX295 Steering Wheel Rim

The Conspit CX295 is a 295mm diameter C-shaped steering wheel designed for sim racing enthusiasts. This wheel is part of the Conspit H.AO series and offers a combination of advanced features and high-quality materials to enhance the racing simulation experience.

Key Features:

1. Diameter and Construction:

   • The CX295 has a diameter of 295mm, offering a realistic and comfortable feel for sim racing.

   • The wheel is covered in high-quality synthetic leather with perforated sections inside the grips for enhanced handling and comfort. The single-piece leather wrap adds to its durability and aesthetic appeal.

2. Design Details:

   • Features blue stitching and a blue top marker, adding a distinctive and sporty look.

   • The base plate includes a central white logo and a black finish, maintaining a sleek and professional appearance similar to other models in the Conspit series.

3. Included in the Kit:

   • CX295 steering wheel.

   • USB connection cable.

   • Mounting hardware for quick and easy installation

Conspit - Quick Release CDP

The Quick Release Conspit CDP is a high-performance quick-release system designed to offer enhanced precision and durability for racing simulation setups. Unlike traditional single ball-type locking mechanisms, the CDP adopts an advanced clip + ball design similar to those used in real Formula racing cars, providing a more secure and reliable connection.

Key Features:

• Innovative Clip + Ball Design: Borrowed from Formula car engineering, this design offers superior locking stability and ease of use compared to the more common single ball-type systems.

• Premium CNC-Machined Structure: Crafted from 7075 aluminum alloy, the CDP quick release is both lightweight and robust. The CNC machining process ensures precision and durability, maintaining performance over prolonged use.

• Zero Backlash: The specialized clip mechanism not only locks the steering wheel securely but also ensures zero backlash, meaning there’s no play or looseness, even after extensive use, providing consistent driving precision.

• Torque Transmission: The clip structure handles torque transmission, ensuring a stable connection and high responsiveness, critical for high-performance racing simulators.

• Compatible with Conspit Wheelbases: The Quick Release CDP is designed for use with the Conspit Ares 10Nm and Ares Platinum 18Nm Direct Drive Wheelbases, making it an ideal upgrade for users seeking improved handling and feedback accuracy.

This quick release system is perfect for competitive sim racers looking for a professional-grade, reliable solution to enhance their driving experience.
