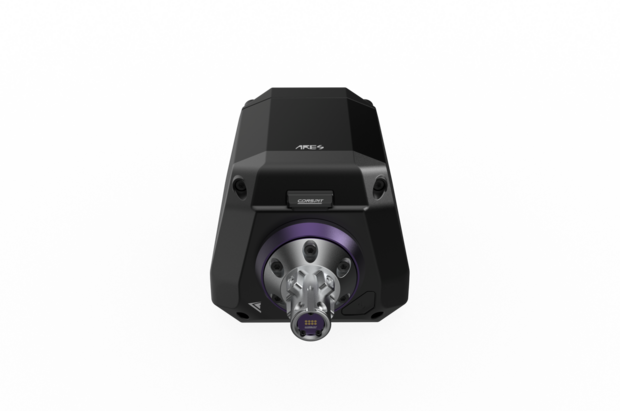

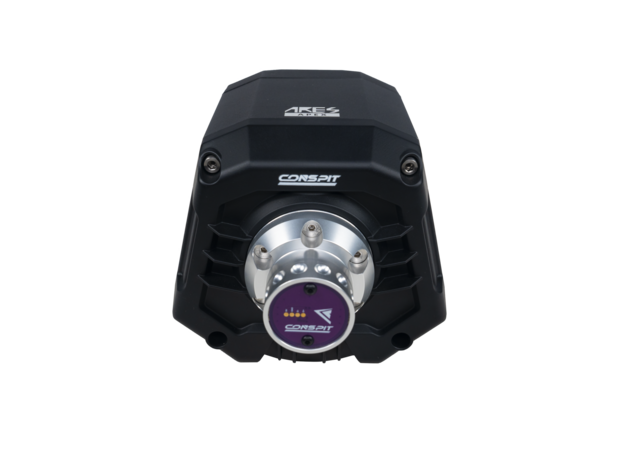

CONSPIT - Ares 12Nm Wheelbase

CONSPIT Ares Series Sim-racing Wheelbase offers an unparalleled competitive advantage for sim racers, delivering a highly immersive and realistic driving experience. With its advanced force feedback system and innovative technology, this wheelbase captures every subtle movement with precision. It is designed to meet the unique demands of sim racing, providing superior control, performance, and stability.

Key Highlights

Superior Performance

• High-Speed Processors: Powered by unsymmetric dual processors (170MHz + 168MHz), the Ares series ensures swift, efficient, and stable calculations during gameplay.

• Precision Steering: High-precision optical encoders offer an angular resolution of less than 0.01°, paired with a 23-bit resolution for ultimate accuracy in capturing steering inputs.

• Military-grade Signal Transmission: A 20 million RPM slip ring ensures seamless and interference-free signal transmission, avoiding common issues like electromagnetic interference.

Masterful Control

• Advanced Motor Control: The motor system delivers exceptional stability, efficiency, and precision, ensuring smooth force feedback torque output.

• Impressive Torque Response: Capable of 12Nm/ms torque response, the Ares base displays even the most delicate high-frequency details for a true-to-life experience.

Professional-Grade Force Feedback Algorithm

• Tailored Force Feedback: Developed in collaboration with Open FFBoard, the force feedback system offers professional-grade simulation of real vehicle dynamics, crafted with input from professional drivers and vehicle dynamics engineers.

Optimized for Sim Racing

• Custom-Built Motors: Unlike competitors that use off-the-shelf servo motors, the Ares series features a motor designed from scratch for sim racing, optimizing key parameters like torque ripple, response, and cogging torque for smoother, more precise feedback.

• Dual Skewed Pole Design: The stator and rotor's dual skewed pole design reduces torque ripple, vibration, and noise, ensuring smoother handling and excellent NVH (Noise, Vibration, and Harshness) performance.

Ultra-High Torque Density

• Compact Powerhouse: The Ares motor delivers immense power in a compact form, thanks to high magnetic permeability cores, powerful NdFeB magnets, and optimized air gap ratios. This results in high torque density and powerful output.

• Minimized Torque Ripple: The motor's electromagnetic design, featuring high slot-pole matching and precise magnetic circuit architecture, ensures ultra-smooth steering with minimal torque ripple.

Design and Innovation

Advanced Thermal Management

• Real-time Monitoring: Continuous monitoring of system temperatures guarantees stable operation and superior thermal management for long-duration races.

Lightweight Industrial Design

• Sleek Profile: Designed with a visually lightweight aesthetic, the compact and sleek construction enhances both visual appeal and performance.

High-Quality Materials

• Durable Build: The main body is constructed from aerospace-grade aluminum, ensuring durability and high strength.

• Efficient Heat Dissipation: The advanced heat dissipation system ensures reliability even during extended endurance races.

Advanced Manufacturing Techniques

• Precision Engineering: Multiple forming, machining, and surface treatments provide the wheelbase with a superior tactile and visual experience.

POGO Module for Expansion

• Future-Proof Design: Magnetic contacts at the front allow for future expansions and quick installation of additional functional components.

High Safety Standards

• Safety Mode: A specialized safety mode ensures safe use for drivers and children alike, making the Ares series suitable for all users under supervision.

Conspit Link 2.0 Software

• Intuitive Controls: Easily configure the base, monitor system status, and create custom presets using the Conspit Link 2.0 software. It includes pre-configured settings from professional drivers, with specialized presets coming soon.

CDP Quick Release System

• Zero Play Over Time: The CDP quick release system incorporates a clasp and ball design inspired by Formula racing cars. Constructed from CNC-machined 7075 aluminum alloy, it delivers high strength and eliminates wear issues, ensuring zero play even with prolonged use.

Specifications of Ares 12Nm Wheelbase

• Dimensions: 134 x 150 x 269 mm

• Net Weight: 5.6 kg

• Maximum Torque: 12NM

• Encoder: High-precision optical encoders

• Motor: Dual Skewed Pole Design

• Resolution: 23-bit

• Quick Release: CONSPIT CDP ball-type single locking quick release

• Mounting Holes: M6 x 4 (bottom), M8 x 4 (sides)

• Platform: PC (Windows)

• E-Stop: Optional

• Connection: USB

• Cable: USB 3.0 cable

• Software: CONSPIT Link 2.0

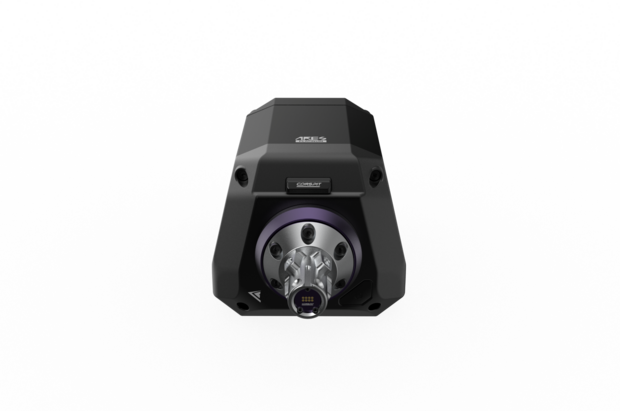

CONSPIT - Ares Platinum 20Nm Wheelbase

The CONSPIT Ares Series Sim-racing Wheelbase offers an unparalleled competitive advantage for sim racers, delivering a highly immersive and realistic driving experience. With its advanced force feedback system and innovative technology, this wheelbase captures every subtle movement with precision. It is designed to meet the unique demands of sim racing, providing superior control, performance, and stability.

Key Highlights

Superior Performance

• High-Speed Processors: Powered by unsymmetric dual processors (170MHz + 168MHz), the Ares series ensures swift, efficient, and stable calculations during gameplay.
• Precision Steering: High-precision optical encoders offer an angular resolution of less than 0.01°, paired with a 23-bit resolution for ultimate accuracy in capturing steering inputs.
• Military-grade Signal Transmission: A 20 million RPM slip ring ensures seamless and interference-free signal transmission, avoiding common issues like electromagnetic interference.

Masterful Control

• Advanced Motor Control: The motor system delivers exceptional stability, efficiency, and precision, ensuring smooth force feedback torque output.
• Impressive Torque Response: Capable of 20Nm/ms torque response, the Ares base displays even the most delicate high-frequency details for a true-to-life experience.

Professional-Grade Force Feedback Algorithm

• Tailored Force Feedback: Developed in collaboration with Open FFBoard, the force feedback system offers professional-grade simulation of real vehicle dynamics, crafted with input from professional drivers and vehicle dynamics engineers.

Optimized for Sim Racing

• Custom-Built Motors: Unlike competitors that use off-the-shelf servo motors, the Ares series features a motor designed from scratch for sim racing, optimizing key parameters like torque ripple, response, and cogging torque for smoother, more precise feedback.
• Dual Skewed Pole Design: The stator and rotor's dual skewed pole design reduces torque ripple, vibration, and noise, ensuring smoother handling and excellent NVH (Noise, Vibration, and Harshness) performance.

Ultra-High Torque Density

• Compact Powerhouse: The Ares motor delivers immense power in a compact form, thanks to high magnetic permeability cores, powerful NdFeB magnets, and optimized air gap ratios. This results in high torque density and powerful output.
• Minimized Torque Ripple: The motor's electromagnetic design, featuring high slot-pole matching and precise magnetic circuit architecture, ensures ultra-smooth steering with minimal torque ripple.

Design and Innovation

Advanced Thermal Management

• Real-time Monitoring: Continuous monitoring of system temperatures guarantees stable operation and superior thermal management for long-duration races.

Lightweight Industrial Design

• Sleek Profile: Designed with a visually lightweight aesthetic, the compact and sleek construction enhances both visual appeal and performance.

High-Quality Materials

• Durable Build: The main body is constructed from aerospace-grade aluminum, ensuring durability and high strength.
• Efficient Heat Dissipation: The advanced heat dissipation system ensures reliability even during extended endurance races.

Advanced Manufacturing Techniques

• Precision Engineering: Multiple forming, machining, and surface treatments provide the wheelbase with a superior tactile and visual experience.

POGO Module for Expansion

• Future-Proof Design: Magnetic contacts at the front allow for future expansions and quick installation of additional functional components.

High Safety Standards

• Safety Mode: A specialized safety mode ensures safe use for drivers and children alike, making the Ares series suitable for all users under supervision.

Conspit Link 2.0 Software

• Intuitive Controls: Easily configure the base, monitor system status, and create custom presets using the Conspit Link 2.0 software. It includes pre-configured settings from professional drivers, with specialized presets coming soon.

CDP Quick Release System

• Zero Play Over Time: The CDP quick release system incorporates a clasp and ball design inspired by Formula racing cars. Constructed from CNC-machined 7075 aluminum alloy, it delivers high strength and eliminates wear issues, ensuring zero play even with prolonged use

Specifications of the Ares Platinum 20Nm Wheelbase

• • Model: Ares Platinum 20Nm Wheelbase
  • Dimensions: 134 x 150 x 287 mm
  • Net Weight: 7.9 kg
  • Maximum Torque: 20NM
  • Encoder: High-precision optical encoders
  • Motor: Dual Skewed Pole Design
  • Resolution: 23-bit
  • Quick Release: CONSPIT ball-type single locking (CDP) quick release
  • Mounting Holes: M6 x 4 (bottom), M8 x 4 (sides)
  • Platform: PC (Windows)
  • E-Stop: Optional
  • Connection: USB
  • Cable: USB 3.0
  • Software: CONSPIT Link 2.0

Conspit - Quick Release CDR

Universal Specification Design

The CDR Quick Release System is is designed using specifications that are widely adopted in the sim-racing industry, ensuring mechanical compatibility between various wheelbases and steering wheels. It accommodates multiple usage scenarios, allowing for rapid assembly and disassembly as well as effortless steering wheel changes.

Automatic Locking Function

The CDR Quick Release System is equipped with an automatic locking system. After pulling up the locking ring, there's no need to manually pull the ring when mounting the steering wheel — it's simply plug-and-play. When removing the steering wheel, just pull the ring, and it will automatically pop out.

Reliable Signal Stability

Integrated spring contacts ensure the system maintains exceptional electrical stability, providing reliable performance even in environments prone to electromagnetic interference (EMI). This stable connection outperforms traditional wireless solutions, guaranteeing uninterrupted operation throughout intense racing scenarios.

Zero-Play Durability

The optimized contact geometry eliminates wear entirely, ensuring zero-play durability even under prolonged extreme loads. This design guarantees stable performance and enhanced longevity, even after extensive use.

Conspit - Quick Release CDP

The Quick Release Conspit CDP is a high-performance quick-release system designed to offer enhanced precision and durability for racing simulation setups. Unlike traditional single ball-type locking mechanisms, the CDP adopts an advanced clip + ball design similar to those used in real Formula racing cars, providing a more secure and reliable connection.

Key Features:

• Innovative Clip + Ball Design: Borrowed from Formula car engineering, this design offers superior locking stability and ease of use compared to the more common single ball-type systems.

• Premium CNC-Machined Structure: Crafted from 7075 aluminum alloy, the CDP quick release is both lightweight and robust. The CNC machining process ensures precision and durability, maintaining performance over prolonged use.

• Zero Backlash: The specialized clip mechanism not only locks the steering wheel securely but also ensures zero backlash, meaning there’s no play or looseness, even after extensive use, providing consistent driving precision.

• Torque Transmission: The clip structure handles torque transmission, ensuring a stable connection and high responsiveness, critical for high-performance racing simulators.

• Compatible with Conspit Wheelbases: The Quick Release CDP is designed for use with the Conspit Ares 10Nm and Ares Platinum 18Nm Direct Drive Wheelbases, making it an ideal upgrade for users seeking improved handling and feedback accuracy.

This quick release system is perfect for competitive sim racers looking for a professional-grade, reliable solution to enhance their driving experience.

Conspit front mount bracket

The Conspit front mount bracket provides a secure and stable solution for mounting your Conspit Ares Wheel Base to your rig. Crafted from durable aluminum, this bracket ensures a firm attachment, keeping your wheel base reliably fixed even during the most intense racing sessions.

Conspit CES E-Stop – Emergency Stop Button for Direct Drive Bases

Ensure maximum safety during your sim racing sessions with the Conspit CES E-Stop. Designed for Conspit direct drive wheelbases, this emergency stop button lets you instantly cut off power in case of unexpected issues. Easy to mount and connect, it provides peace of mind when pushing your setup to the limit.

Key Features

• Compatible with Conspit Direct Drive bases

• Quick emergency power cut-off for maximum safety

• Sturdy and reliable build quality

• Easy installation and accessible placement

Perfect for competitive sim racers and simulation centers where safety and reliability are essential.

CONSPIT ARES – 15cm Extension Rod

The CONSPIT ARES 15cm Extension Rod increases the distance between your wheel and base by 150 mm, giving you a more realistic and comfortable driving position. Precision CNC-machined from high-grade aluminum, this extension delivers rigidity and stability for even the most intense sim racing sessions.

Key Features:

• Length: 150 mm (15 cm)
• Material: CNC-machined anodized aluminum
• Compatibility: Fits CONSPIT ARES Direct Drive bases
• Easy Installation: Mounts between your base and wheel
• Maximum Rigidity: Zero flex for precise steering feedback

Benefits:

• Realistic position: Adjust wheel distance for ideal ergonomics, especially for F1 or GT-style cockpits

Conspit - USB-A Adapter Spacer

• An adapter ring that mounts onto the front of the ARES base, featuring an integrated USB-A port and USB Refresher chip.
• Any USB-enabled wheel can connect through it to the ARES base’s main USB Hub, enabling true USB Passthrough. - Designed not only for the CONSPIT ecosystem, but for the entire sim racing community — addressing cross-brand compatibility challenges between wheels and bases.

Solving User Pain Points

• No More Cable Drag: Wheel USB cables plug directly into the base front, rotating with the shaft — no tangling or loosening.
• Shorter, More Stable Connection: Port closer to the wheel allows short cables, ensuring power delivery and stable data transmission.
• High Bandwidth Ready: Built-in USB Refresher keeps even high-data wheels (e.g., with SimHub screens) running smoothly.

Open Ecosystem & Expansion

• Brand-Agnostic: Compatible with almost any third-party USB wheel on the market.
• Freedom of Choice: Mix and match wheels and CONSPIT bases without brand lock-in.
• Open Pathway: Direct USB Passthrough to the wheelbase provides stable bandwidth for future expansion.

Conspit Bracket for Ares base and Aluminum Profile

The Conspit Bracket for Ares base and Aluminum Profile provides a secure and stable solution for mounting your Conspit Ares Wheel Base to your rig. Crafted from durable aluminum, this bracket ensures a firm attachment, keeping your wheel base reliably fixed even during the most intense racing sessions.
