Asetek pedals
Loading...
Asetek La Prima clutch
While La Prima™ is our entry-level series, make no mistake! Unlike many other flimsy entry-level pedals on the market, we have not compromised on quality, materials, design, or adjustability, as these are identical to high-end sibling Invicta™. Instead we chosen to take out some of the features, that is not critically needed. I.e. the RGB strip and the clutch bite point assembly. Instead we have installed a harder torsion spring. When buying an Asetek SimSports® pedal set, you buy into a platform, and should you wish later to upgrade to the Invicta™ clutch system, you simply buy an upgrade kit, and all you pay for is the upgrade itself. As such, your purchase will be future-proof. Better for you – better for the environment.
This product is only compatible with all Asetek SimSports® Pedal sets – not as a stand-alone product.
GENERAL TECH & DIMENSIONS
- Exquisite, radical, and minimalistic industrial Danish design
- 16-bit wireless magnetic hall CPS (Clutch Position Sensor) with no mechanical wear and zero maintenance
- Die-cast aluminum zero play pedal arm.
- Pedal arm designed for 200 kg of force and a burst pressure of up to 700 kg!
- Four mechanical pedal curve settings
- Attaches to Asetek SimSports® Pedal sets
- Adjustable pedal stop
- Adjustable travel settings
- Made in Denmark
- Sustainable manufacturing with the reuse of waste aluminum from our die-cast processes.
- Die-cast high-quality pedal base with integrated heel rest
- The clutch can be calibrated through the RaceHub™ software
- Clutch upper and lower deadzone, as well as bite point, can be set through the RaceHub™ software
- All adjustable mechanical features are by default colored orange
- If purchasing the La Prima™ Clutch separately, you will have to use hex keys supplied when purchasing the Invicta™ Pedals Brake & Throttle, the Forte® Pedals Brake & Throttle or the La Prima™ Brake & Throttle, or purchase them separately at our local hardware store
Dimensions
Depth, width, and height: 406 mm x 115 mm x 271 mm
Weight: 1,6 kg
Asetek Invicta Clutch
Asetek Clutch, for Invicta and Forte pedals
The Asetek Clutch was designed and tested rigorously during development to ensure that the racer will feel a realistic bite point when shifting gears in the racing simulator. The fierce spring load gives you a realistic and slamming rebound, and a feeling of true engagement exactly like you will feel from the slave cylinder and clutch release bearing in a real racecar.
The intuitive design allows for easy adjustment of force and a mechanical change of pedal curves. Mapping out the curve to your needs gives you the engagement that ensures the best clutch performance for your needs. The Asetek Clutch will help you gain all-important milliseconds while shifting.
This product is only compatible with the Asetek Invicta Brake and Throttle and the Asetek Forte® Brake and Throttle – not as a stand-alone product. Both Asetek Invicta and Forte pedal face plates are included.
Looking for Asetek software or manuals? Check our help center!

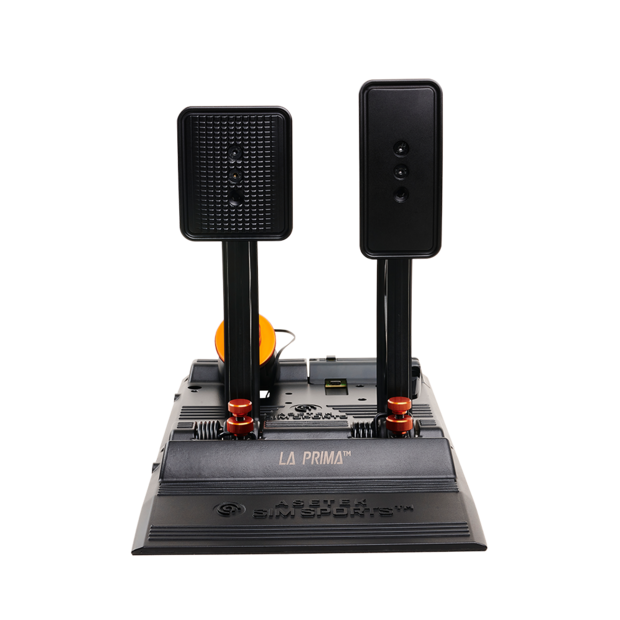

Asetek La Prima pedals
Inspired by real-life racing, the La Prima™ Sim Racing Pedal set has been thoroughly tested by racers and sim racers alike. With that feedback in mind, the pedals were engineered and designed to give you a realistic brake experience without breaking the bank.
“Probably the best pedals, that I’ve ever tested at this price point, in terms of that overall build quality and materials” -Will Ford, Boosted Media
While La Prima™ is our entry-level series, make no mistake! Unlike many other flimsy entry-level pedals on the market, we have not compromised on quality, materials, design, or adjustability, as these are identical to its mid- and high-end siblings Forte® and Invicta™, With Invicta™ arguably being the best sim racing pedals ever built.
Instead of compromising on quality, performance or reliability, we have taken a differente route. Rather, we have chosen to make it an upgradeable pedal set. This means, that you can upgrade to the full Forte® experience by upgrading the LED and Throttle adjustment system. You can also upgrade the M.L.C.P.C.™ brake cylinder to a T.H.O.R.P.™ hydraulic brake cylinder.
If you want the feeling of real racing and quality materials without breaking the bank, the La Prima™ pedal set is for you! Using The M.L.C.P.C.™ brake pedal technology, the brake pedal on the La Prima™ pedal set can be adjusted from soft to hard (by changing elastomers), and it will stay that way – unlike many other sim racing pedals on the market, where the hardness and feel will degrade over time.
When buying an Asetek SimSports ® pedal set, you buy into a platform, making it simple and easy to upgrade to Forte ® or Invicta™ at a later point!
You simply buy your desired upgrade kit, and all you pay for is the upgrade itself. As such, your purchase of the La Prima™ pedal set will be future-proof. Better for you – better for the environment.
Tech Specs
- Exquisite, radical, and minimalistic industrial Danish design
- Made in Denmark
- Adjustable pedal stops
- Adjustable travel settings
- All-black anodized aluminum pedal base and pedal arms
- All-black anodized aluminum smooth and sock-friendly pedal plates allowing hours and hours of comfortable use. The pedal plates can be adjusted vertically
- Pedal base with integrated heel rest
- Calibrations made in RaceHub will automatically be saved in our EPROM (Erasable Programmable Read-Only Memory). This results in calibration (pressures, deadzones, and more) that will remain saved for every simulator/game (You do need to set 0 and 100% values in the game)
- Only one USB connection to the PC from the pedal base regardless of 2 or 3 pedal utilization
- All adjustable mechanical features are by default colored orange
- Inhouse-developed electronics with 16-bit resolution
- Easy to add clutch pedal to the La Prima™ Throttle & Brake combo
- Designed and tested to +1,000,000 activations, which far exceeds any race car specification
Depth, width, and height: 457 mm x 212 mm x 256 mm
Weight: 3 kg
Brake System
The M.L.C.P.C.™ (Mechanical Load Cell Powered Cylinder) patent-pending brake cylinder gives you the experience of driving a real race car.
Die-cast aluminum zero play pedal arm with integrated long durability ball bearings and bronze bushing at the clevis rotation point
Load cell will sense up to 180 kg of force on the face of the pedal plate with the hardest elastomer (4000N depressed 12mm / until 2nd stage is engaged.)
Geared ratio between pedal pressure and load cell deflection, ensuring constant and full resolution to any user independent of elastomer hardness. 4000 points in only 12mm inside the M.L.C.P.C.™ cylinder from released pedal to 2nd stage 1/5th of a human hair.
Two-stage system that mimics the hard- and soft stages of a real race car
Manually adjustable initial touch hardness to mimic perfect brake pad to brake disc distance
Pedal arm designed for 200 kg of force and a burst pressure of up to 700 kg!
Throttle System
Die-cast aluminum zero play pedal arm.
16-bit wireless magnetic hall TPS (Throttle Position Sensor) with no mechanical wear and zero maintenance
Custom throttle curves can be adjusted and 100% customized in the RaceHub™ software to mimic a real race car butterfly opening. For example, a linear curve in dry conditions and a progressive in wet conditions
Adjustable pedal stop
Pedal arm designed for 200 kg of force and a burst pressure of up to 700 kg!

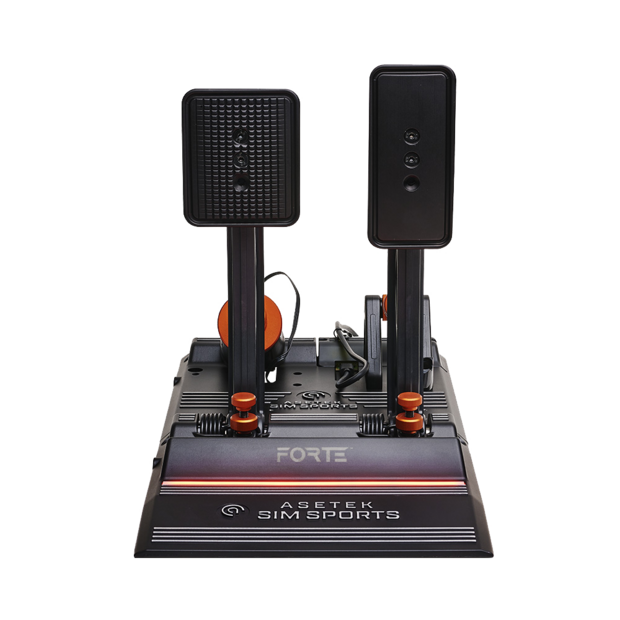

Asetek Forte pedals
Asetek Forte pedals
Inspired by real-life racing standards, the Asetek Forte™ Sim Racing Pedal set has been thoroughly tested by racers and sim racers alike. With that feedback in mind, the Asetek sim pedals are engineered and designed. The M.L.C.P.C.™ (Mechanical Load Cell Powered Cylinder) brake cylinder is designed to give you a realistic brake experience and is rigorously tested with up to 180 kg pedal force.
If you have been looking for the best race car brake pedal feel, without going full hydraulic, look no further! The brake pedal on the Asetek Forte pedal set can be adjusted from soft to hard and it will stay that way – unlike many other sim racing pedals on the market, where the hardness and feel will degrade over time. It is not a coincidence a race driver wants a brake pedal, when fully depressed, feels like pushing a wall. Furthermore, Forte, while not hydraulic, will still offer you the “hydraulic sensation” of a fully depressed brake pedal, where you can still pressure modulate/trail brake thanks to the 2-stage system inspired by Invicta. In real life, it will feel like the brake pedal when pressed 100% and hard, still will react to further pressure like when trying to compress the fluid in a brake system.
The design is engineered with user experience in mind, where all adjustable elements are colored to get you started quickly, and to ensure intuitive and mostly toolless use. The Forte sim pedals are highly adjustable to help you channel your inner race car driver, by changing the travel and hardness settings to your exact preference. And by using the Asetek SimSports RaceHub™ software, you’re ready to race in no time.
The Asetek SimSports™ M.L.C.P.C (Mechanical Load Cell Powered Cylinder) brake cylinder gives you, shy of a full hydraulic system, an authentic race car driving experience. The sim racing pedal set is in every sense Made in Denmark – designed, engineered, and assembled in Denmark. The brake cylinder features a custom-designed load cell sensor that detects actual changes in force on the pedal face (up to 180 kg of force on the pedal face itself), making it the closest you will come to a realistic brake experience.
Asetek Forte™ Pedals Brake and Throttle are compatible with the Invicta™ Clutch System.
Looking for Asetek software or manuals? Check our help center!

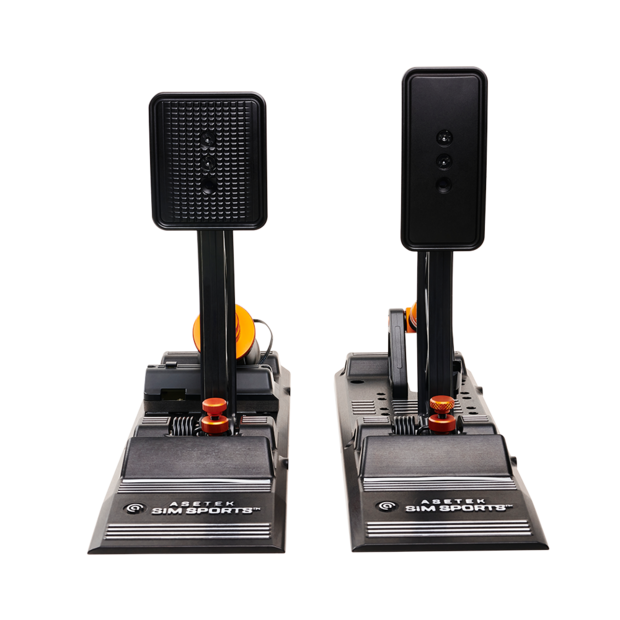

Asetek Forte S-Series pedals
Asetek Forte S Series
Asetek Forte S Series Tech Specs
- Exquisite, radical, and minimalistic Danish industrial design
- Made in Denmark
- Adjustable pedal stops
- Adjustable travel settings
- All-black anodized aluminum pedal base, pedal arms,, with CNC machined contrast cut
- All-black anodized aluminum smooth and sock friendly pedal plates allowing hours and hours of comfortable use. The pedal plates can be adjusted vertically.
- Pedal base with integrated heel rest and RGB LED that can be adjusted, dimmed, or turned completely off in the RaceHub™ software
- Calibrations made in RaceHub will automatically be saved in our EPROM (Erasable Programmable Read-Only Memory). This results in calibration (pressures, deadzones and more) will be remain saved for every simulator/game (You do need to set 0 and 100% value in the game).
- Only one USB connection to the PC from the pedal base regardless of 2 or 3 pedal utilization
- All adjustable mechanical features are by default colored orange
- Inhouse-developed electronics with 16-bit resolution.
- Easy to add clutch pedal to the Forte Throttle & Brake combo
- Sustainable manufacturing with 100% on-site re-use of waste material
- Designed and tested to +1,000,000 activations, which far exceeds any race car specification
Asetek Forte S Series Brake System
- The M.L.C.P.C.™ (Mechanical Load Cell Powered Cylinder) patent pending brake cylinder gives you the experience of driving a real race car
- Die-cast aluminum zero play pedal arm with integrated long durability ball bearings and bronze bushing at the clevis rotation point
- Sustainable manufacturing with 100% on-site re-use of waste material
- Two-stage system that mimics the hard- and soft stages of a real race car
- Three interchangeable elastomers for adjustment of hardness combined with an integrated physical stop and expansion chamber to mimic race car feel as well as not overloading the elastomers
- Manually adjustable initial touch hardness to mimic perfect brake pad to brake disc distance
- Load cell will sense up to 180 kg of force on the face of the pedal plate
- Pedal arm designed for 200 kg of force and a burst pressure of up to 700 kg!
Asetek Forte S Series Throttle System
- Die-cast aluminum zero play pedal arm with integrated long durability ball bearings and bronze bushing at the clevis rotation point.
- Sustainable manufacturing with 100% on-site re-use of waste material
- 16-bit magnetic wireless hall TPS (Throttle Position Sensor) with no mechanical wear and zero maintenance
- Custom throttle curves can be adjusted and 100% customized in the RaceHub™ software to mimic a real race car butterfly opening. For example, a linear curve in dry conditions and a progressive in wet conditions
- Adjustable pedal hardness
- Adjustable pedal travel
- Adjustable pedal stop
- Interchangeable spring for bigger step in pedal hardness
- Pedal arm designed for 200 kg of force and a burst pressure of up to 700 kg!
- The M.L.C.P.C.™ System
Looking for Asetek software or manuals? Check our help center!

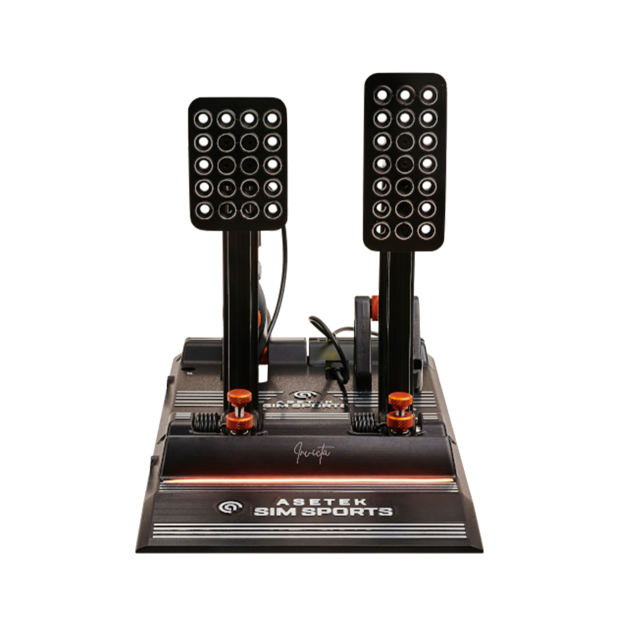

Asetek Invicta pedals
Asetek Invicta pedals
Asetek SimSports™ Invicta™ Pedals are the pinnacle of sim racing gear. The hydraulic sim racing pedals are designed with real racecar feel, durability, and ease of use in mind. They are plug’n’play capable out of the box and by using the Asetek SimSports RaceHub™ software, you will experience a plethora of advanced features for experienced sim racers. However, unlike to most sim racing products on the market, you do not require expert skills to unlock the full potential.
T.H.O.R.P.™ (Twin Hydraulic Opposing Rapid Pistons) is Asetek SimSports’ hydraulic brake cylinder which gives the racer, the ultimate experience of driving a real racecar. The entire set of pedals are, in every sense, “Made in Denmark” – Designed, engineered, and assembled in Denmark. The brake cylinder features an automotive grade pressure sensor, which makes it the closest you will come to a realistic brake experience in sim racing.
Want to “just” shave off some tenths of your best lap times? The Invicta Sim Racing Pedals will help you do exactly that. Under appreciated by many, half of the steering in a racecar is provided by the pedal input. Want to completely immerse yourself in a racing experience using a racing simulator that will provide everything but the smell of burning rubber? Invicta will be a crucial piece of your racing simulator as well.
Compatible with Invicta Throttle Footrest – a quick-to-mount accessory allowing you to rest your foot during long races.
GENERAL TECH
- Exquisite, radical, and minimalistic industrial Danish design
- Adjustable pedal stops
- Adjustable travel settings
- All black anodized aluminum pedal base, pedal arms, and pedal plates, with CNC machined contrast cut surfaces.
- Pedal base with integrated heel rest and RGB LED that can be adjusted, dimmed, or turned completely off in the RaceHub™ software
- Adjustable pedal plates that can be moved along the x- and y-axis
- Calibrations made in RaceHub™ will automatically be saved in our EPROM (Erasable Programmable Read-Only Memory). This results in calibration (pressures, deadzones and more) will be remain saved for every simulator/game (You do need to set 0 and 100% value in the game).
- Only one USB connection to the PC from the pedal base regardless of 2 or 3 pedal utilization
- Each pedal can be calibrated through the intuitive and easy to use RaceHub™ software
- Pedal upper and lower dead zones can be set through the RaceHub™ software
- All adjustable mechanical features are by default colored orange
- Inhouse developed electronics with 16-bit resolution and automotive-grade pressure sensor
- Optional to purchase smooth sock-friendly pedal plates
- Easy to add clutch pedal to the Throttle & Brake combo
- Made in Denmark
- Sustainable manufacturing with 100% on-site re-use of waste material
- Designed and tested to 1,000,000 activations, which far exceeds any racecar specification
BRAKE SYSTEM
- The T.H.O.R.P.™ (Twin Hydraulic Opposing Rapid Pistons) patent-pending hydraulic brake cylinder gives the you the ultimate experience of driving a real racecar
- Die-cast aluminum zero play pedal arm with integrated long durability ball bearings and bronze bushing at the clevis rotation point.
- Sustainable manufacturing with 100% on-site re-use of waste material
- Automotive-grade pressure sensor
- The inhouse designed brake cylinder features sleek CNC machined details, adding to the exquisite overall look.
- Three interchangeable elastomers for adjustment of hardness combined with an integrated physical stop and an expansion chamber to mimic perfect racecar feel as well as not overloading the elastomer
- Manually adjustable initial touch hardness to mimic perfect brake pad to brake disc distance
- Pressure sensor measures 0-100 bar – tested to withstand a repetitive pressure of 100 bar (seal burst pressure 130 bar)
- 100 bar of pressure equals 180 kg of force on the face of the pedal plate
- Hydraulic Brake Cylinder made from forged aluminum
- Pedal arm designed for 200 kg of force and a burst pressure of up to 700 kg!
THROTTLE SYSTEM
- Die-cast aluminum zero play pedal arm with integrated long durability ball bearings and bronze bushing at the clevis rotation point. Sustainable manufacturing with 100% on-site re-use of waste material
- 16-bit magnetic wireless hall TPS (throttle position sensor) with no mechanical wear and zero maintenance
- Custom throttle curves can be adjusted and 100% customized in the RaceHub™ Software to mimic real racecar butterfly opening. For example a linear curve in dry conditions and a progressive in wet conditions
- Adjustable pedal hardness
- Adjustable pedal travel
- Adjustable pedal stop
- Interchangeable spring for bigger step in pedal hardness
- Pedal arm is designed for 200 kg of force and a burst pressure of up to 700 kg!
DIMENSIONS
Depth, width, and height: 457 mm x 212 mm x 256 mm
Weight: 3 kg
Looking for Asetek software or manuals? Check our help center!
Asetek Invicta S-Series pedals
Asetek Invicta S series
Asetek Invicta Tech Specs
- Exquisite, radical, and minimalistic industrial Danish design (Registered Community Design No. 009148265-0001/0002/0003)
- Adjustable pedal stops
- Adjustable travel settings
- All black anodized aluminum pedal base, pedal arms, and pedal plates, with CNC machined contrast cut surfaces.
- Pedal base with integrated heel rest and RGB LED that can be adjusted, dimmed, or turned completely off in the RaceHub software
- Adjustable pedal plates that can be moved along the x- and y-axis
- Calibrations made in RaceHub will automatically be saved in our EPROM (Erasable Programmable Read-Only Memory). This results in calibration (pressures, deadzones and more) will be remain saved for every simulator/game (You do need to set 0 and 100% value in the game).
- Only one USB connection to the PC from the pedal base regardless of 2 or 3 pedal utilization
- Each pedal can be calibrated through the intuitive and easy to use RaceHub software
- Pedal upper and lower dead zones can be set through the RaceHub software
- All adjustable mechanical features are by default colored orange
- Inhouse developed electronics with 16-bit resolution and automotive-grade pressure sensor
- Optional to purchase smooth sock-friendly pedal plates
- Easy to add clutch pedal to the Throttle & Brake combo
- Made in Denmark
- Sustainable manufacturing with 100% on-site re-use of waste material
- Designed and tested to 1,000,000 activations, which far exceeds any racecar specification
Brake System
- The T.H.O.R.P. (Twin Hydraulic Opposing Rapid Pistons) patent-pending hydraulic brake cylinder gives the you the ultimate experience of driving a real racecar
- Die-cast aluminum zero play pedal arm with integrated long durability ball bearings and bronze bushing at the clevis rotation point.
- Sustainable manufacturing with 100% on-site re-use of waste material
- Automotive-grade pressure sensor
- The inhouse designed brake cylinder features sleek CNC machined details, adding to the exquisite overall look.
- Three interchangeable elastomers for adjustment of hardness combined with an integrated physical stop and an expansion chamber to mimic perfect racecar feel as well as not overloading the elastomer
- Manually adjustable initial touch hardness to mimic perfect brake pad to brake disc distance
- Pressure sensor measures 0-100 bar – tested to withstand a repetitive pressure of 100 bar (seal burst pressure 130 bar)
- 100 bar of pressure equals 180 kg of force on the face of the pedal plate
- Hydraulic Brake Cylinder made from forged aluminum
- Pedal arm designed for 200 kg of force and a burst pressure of up to 700 kg!
Throttle System
- Die-cast aluminum zero play pedal arm with integrated long durability ball bearings and bronze bushing at the clevis rotation point. Sustainable manufacturing with 100% on-site re-use of waste material
- 16-bit magnetic wireless hall TPS (throttle position sensor) with no mechanical wear and zero maintenance
- Custom throttle curves can be adjusted and 100% customized in the RaceHub Software to mimic real racecar butterfly opening. For example a linear curve in dry conditions and a progressive in wet conditions
- Adjustable pedal hardness, travel and stop
- Interchangeable spring for bigger step in pedal hardness
- Pedal arm is designed for 200 kg of force and a burst pressure of up to 700 kg!
Dimensions
- Depth, width, and height: 457 mm x 212 mm x 256 mm
- Weight: 3 kg
