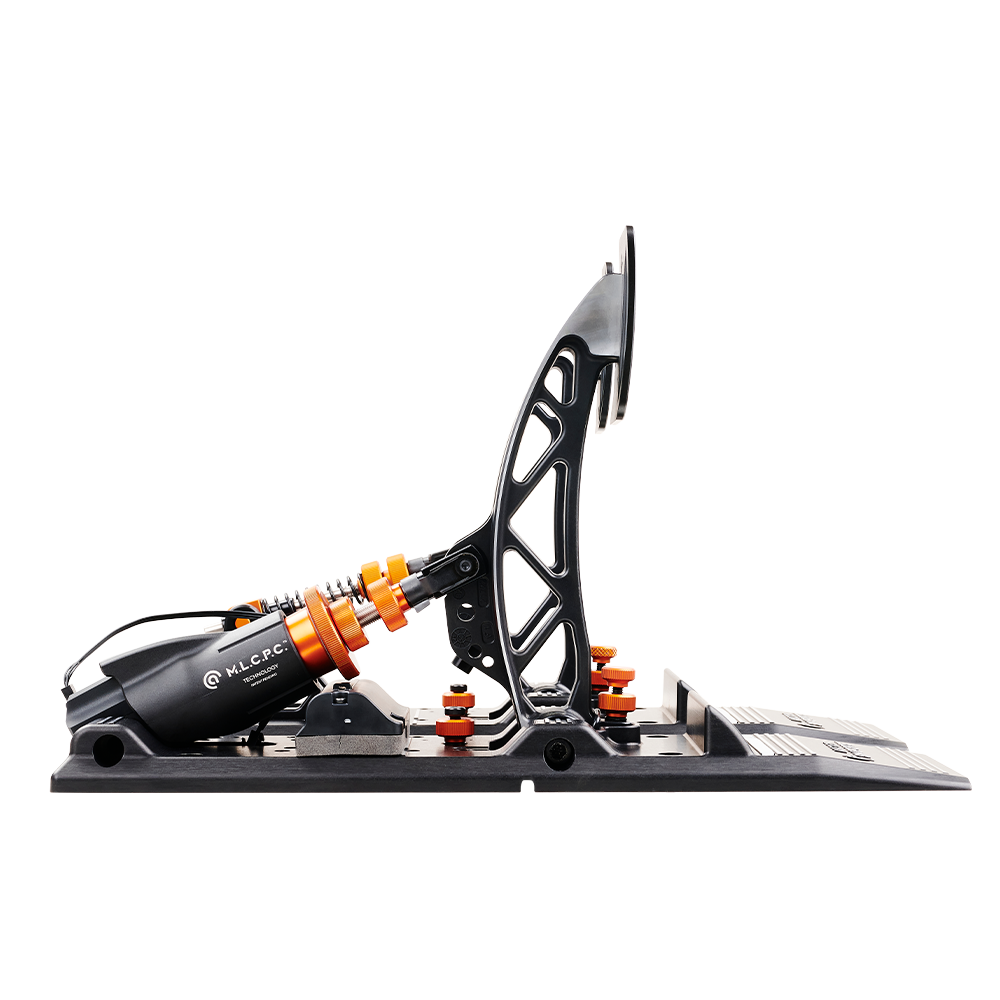

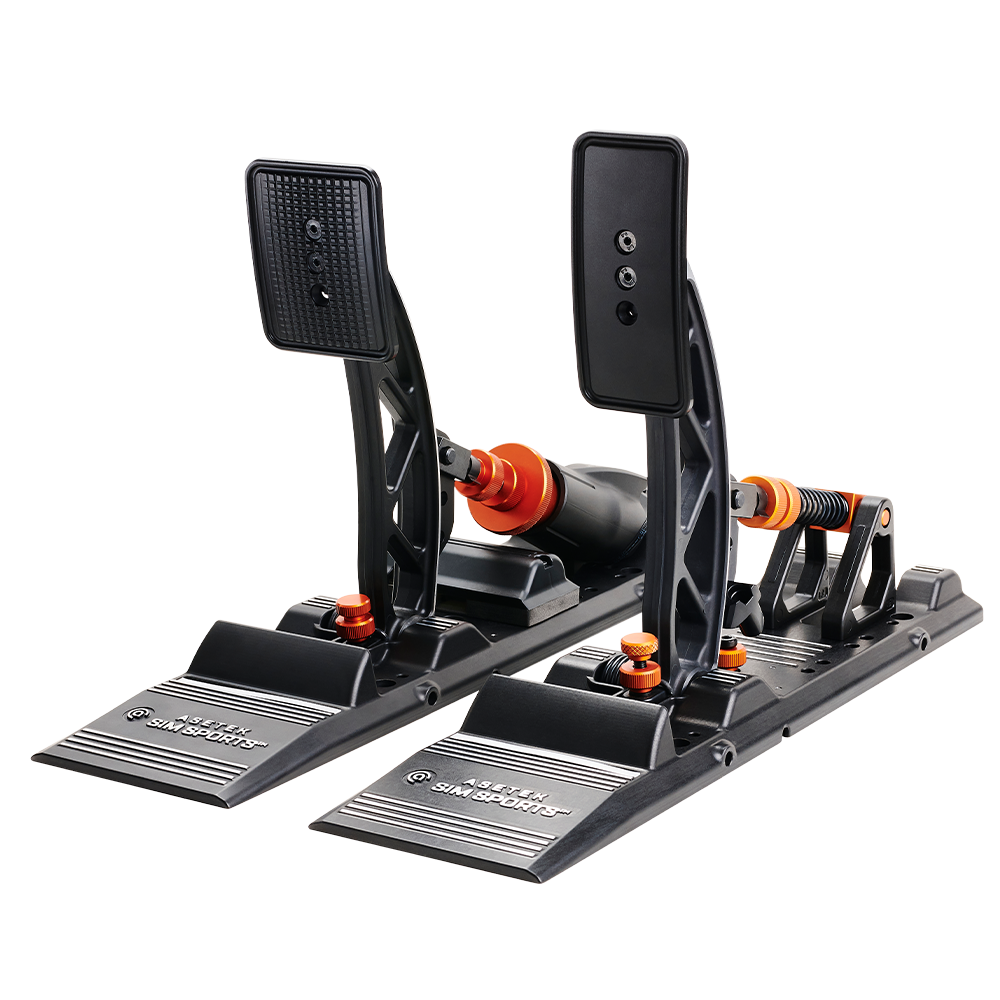

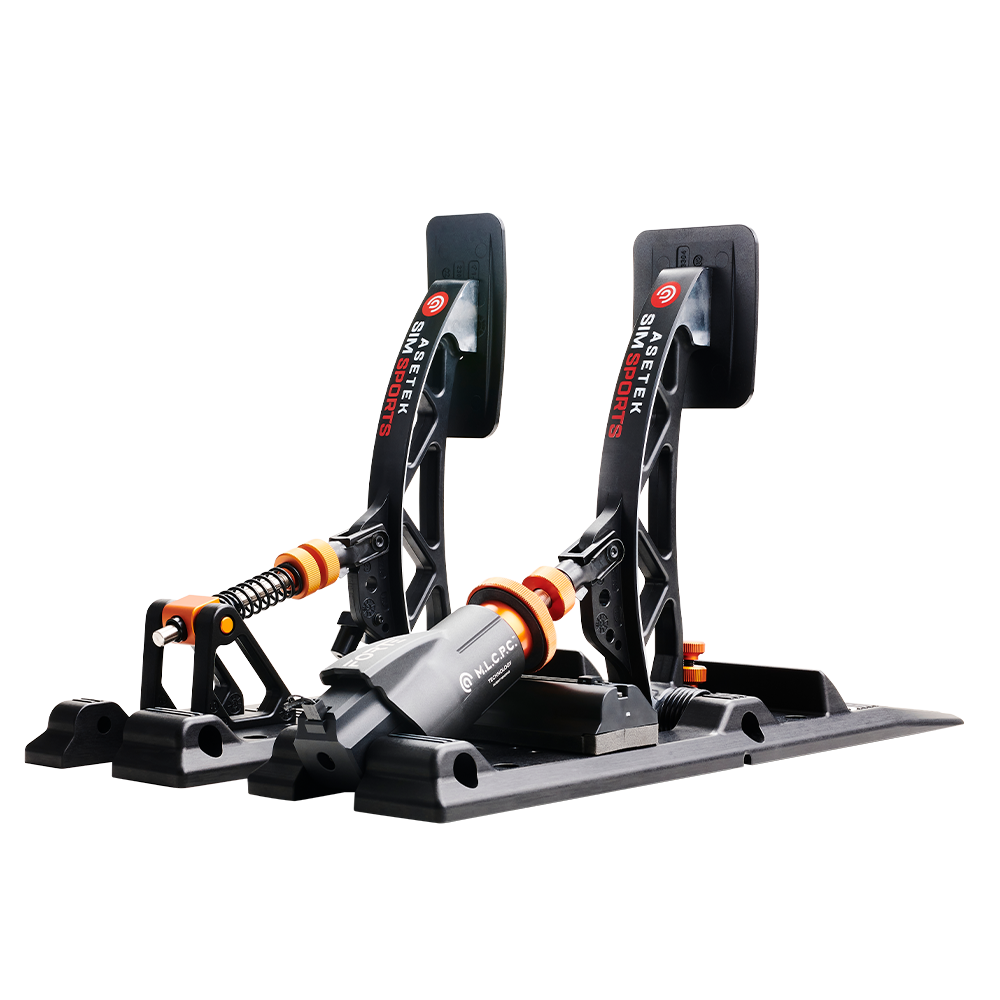

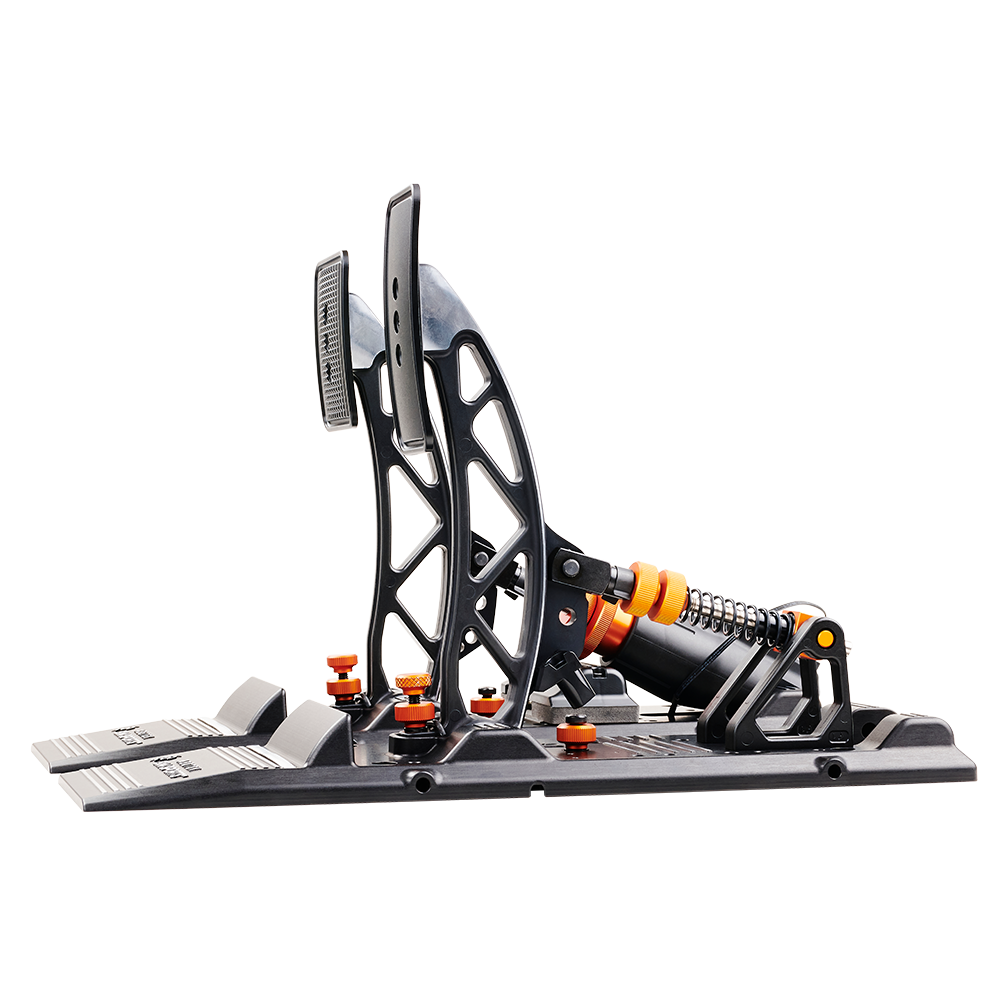

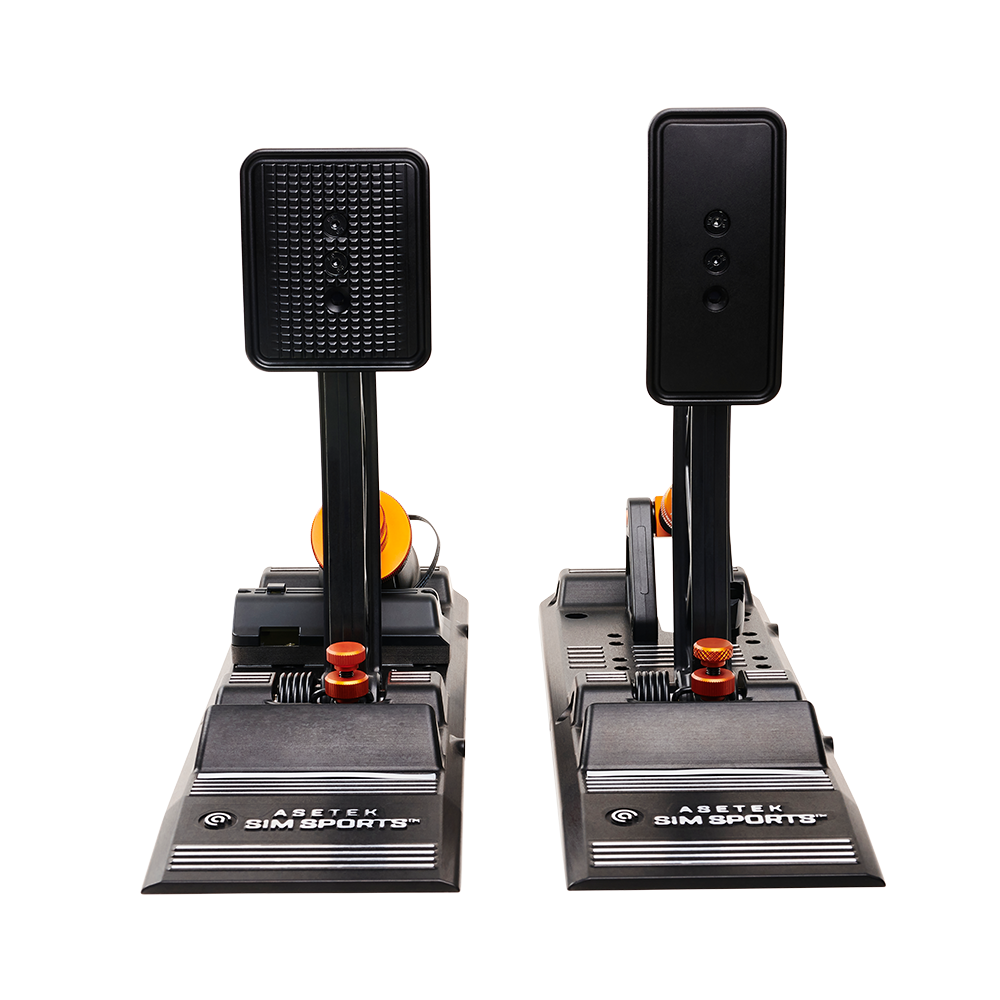

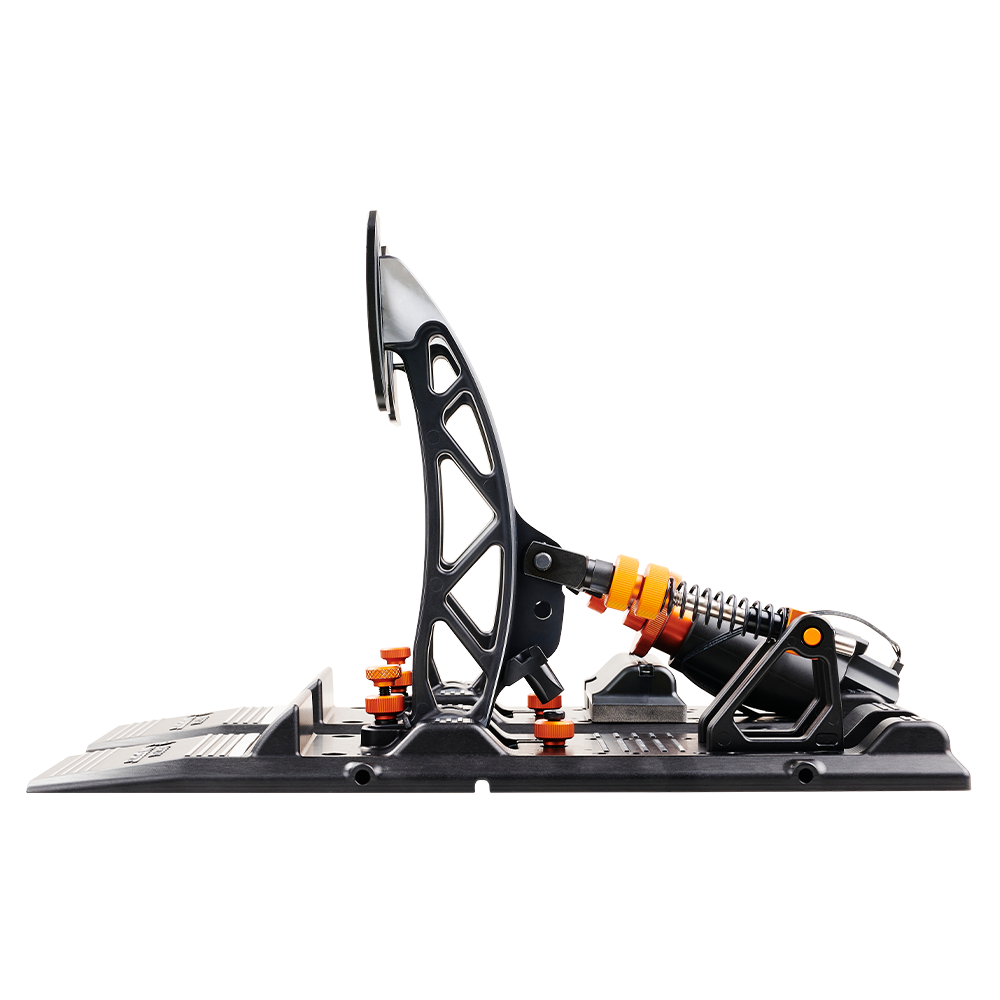

Asetek Forte S-Series pedals

Asetek Forte pedals S-Series

0 Reviews
619,00
Price per unit
Limited in stock
Variations: Asetek Forte S-Series pedals
Asetek Forte S-Series
Asetek Forte pedals
remove add
Order
Asetek Forte S-Series

Product description

Asetek Forte S Series

Asetek Forte S Series Tech Specs

  • Exquisite, radical, and minimalistic Danish industrial design
  • Made in Denmark
  • Adjustable pedal stops
  • Adjustable travel settings
  • All-black anodized aluminum pedal base, pedal arms,, with CNC machined contrast cut
  • All-black anodized aluminum smooth and sock friendly pedal plates allowing hours and hours of comfortable use. The pedal plates can be adjusted vertically.
  • Pedal base with integrated heel rest and RGB LED that can be adjusted, dimmed, or turned completely off in the RaceHub™ software
  • Calibrations made in RaceHub will automatically be saved in our EPROM (Erasable Programmable Read-Only Memory). This results in calibration (pressures, deadzones and more) will be remain saved for every simulator/game (You do need to set 0 and 100% value in the game).
  • Only one USB connection to the PC from the pedal base regardless of 2 or 3 pedal utilization
  • All adjustable mechanical features are by default colored orange
  • Inhouse-developed electronics with 16-bit resolution.
  • Easy to add clutch pedal to the Forte Throttle & Brake combo
  • Sustainable manufacturing with 100% on-site re-use of waste material
  • Designed and tested to +1,000,000 activations, which far exceeds any race car specification

Asetek Forte S Series Brake System

  • The M.L.C.P.C.™ (Mechanical Load Cell Powered Cylinder) patent pending brake cylinder gives you the experience of driving a real race car
  • Die-cast aluminum zero play pedal arm with integrated long durability ball bearings and bronze bushing at the clevis rotation point
  • Sustainable manufacturing with 100% on-site re-use of waste material
  • Two-stage system that mimics the hard- and soft stages of a real race car
  • Three interchangeable elastomers for adjustment of hardness combined with an integrated physical stop and expansion chamber to mimic race car feel as well as not overloading the elastomers
  • Manually adjustable initial touch hardness to mimic perfect brake pad to brake disc distance
  • Load cell will sense up to 180 kg of force on the face of the pedal plate
  • Pedal arm designed for 200 kg of force and a burst pressure of up to 700 kg!

Asetek Forte S Series Throttle System

  • Die-cast aluminum zero play pedal arm with integrated long durability ball bearings and bronze bushing at the clevis rotation point.
  •  Sustainable manufacturing with 100% on-site re-use of waste material
  • 16-bit magnetic wireless hall TPS (Throttle Position Sensor) with no mechanical wear and zero maintenance
  • Custom throttle curves can be adjusted and 100% customized in the RaceHub™ software to mimic a real race car butterfly opening. For example, a linear curve in dry conditions and a progressive in wet conditions
  • Adjustable pedal hardness
  • Adjustable pedal travel
  • Adjustable pedal stop
  • Interchangeable spring for bigger step in pedal hardness
  • Pedal arm designed for 200 kg of force and a burst pressure of up to 700 kg!
  • The M.L.C.P.C.™ System

 Looking for Asetek software or manuals? Check our help center!

Product specification

Asetek pedals

Throttle Mechanism Mechanical Spring Loaded Throttle
Brake Type M.L.C.P.C. Load Cell
Throttle travel adjustment
Throttle hardness adjustment
Throttle preload adjustment
Brake hardness adjustment
Brake travel adjustment
Brake preload adjustment
Pedal angle adjustment
Calibration
Upper and lower deadzone adjustment
ARGB Led Strip
Custom pedal maps
Dimensions Throttle: 406mm x 115mm x 271mm / Brake: 410mm x 115 mm x 256mm
Weight 6,2 kg
Materials Pedals: Aluminium - PCB Housing: Plastic
Throttle sensor type Hall Sensor
Brake sensor types Load Cell Sensor
Power input 5V 500mA - Max 2,5 W
Operating Temperature 0°C to 40°C, room temperature
