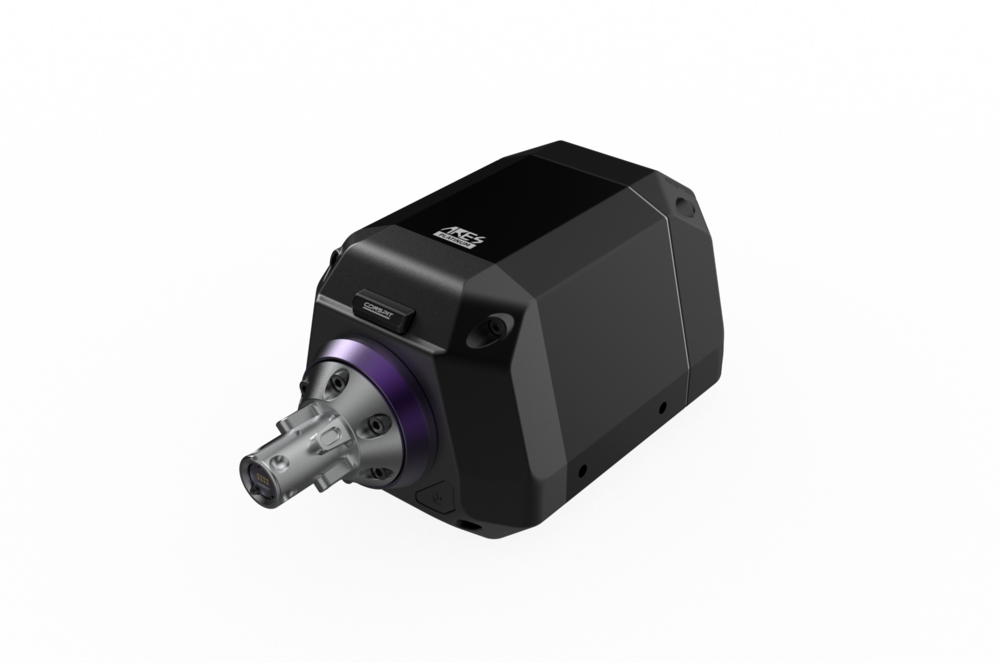

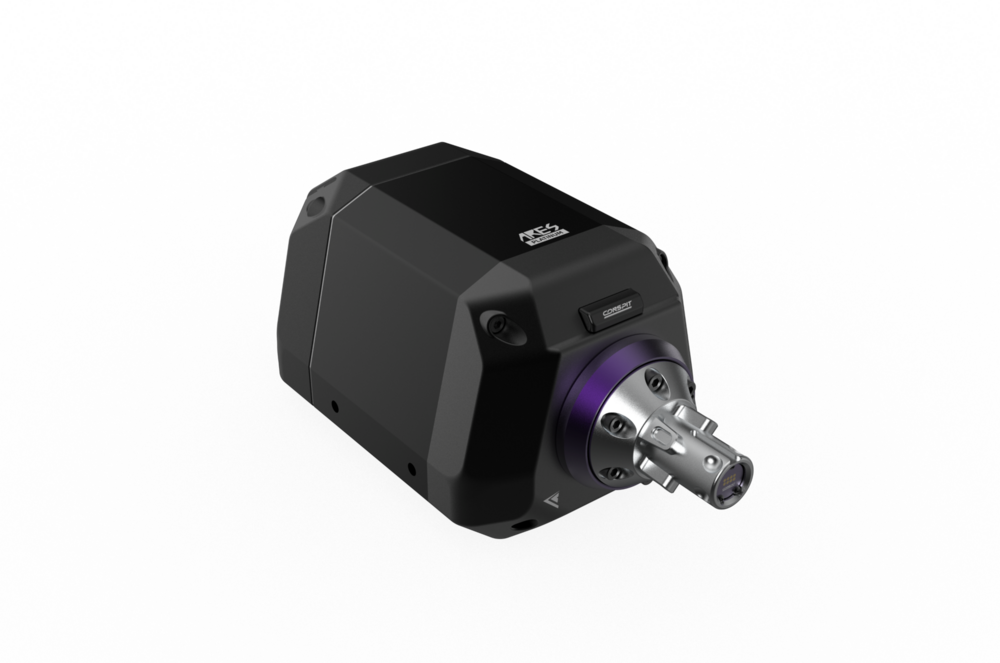

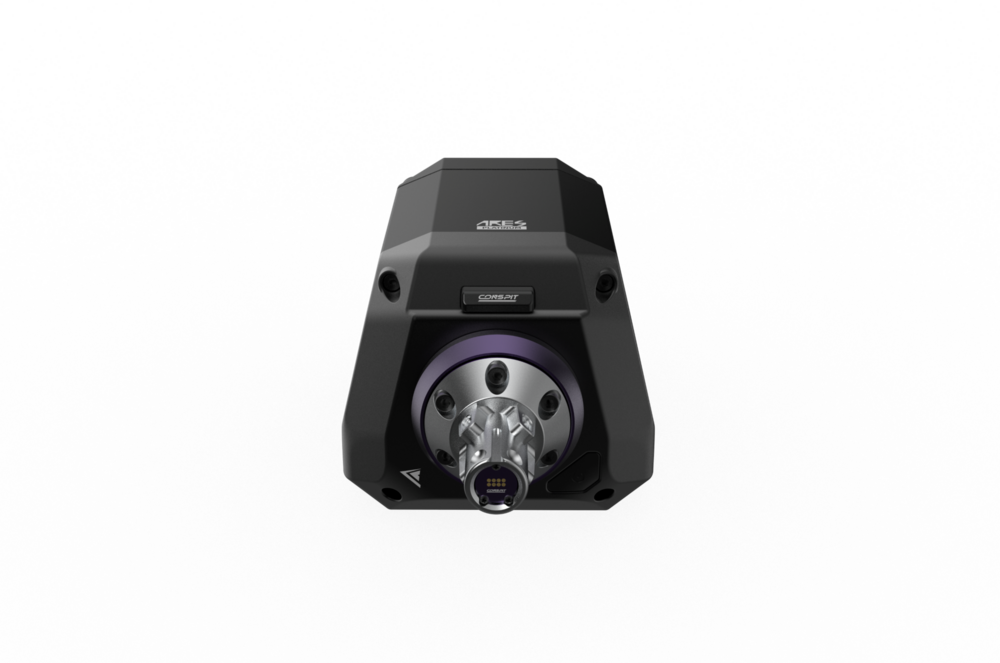

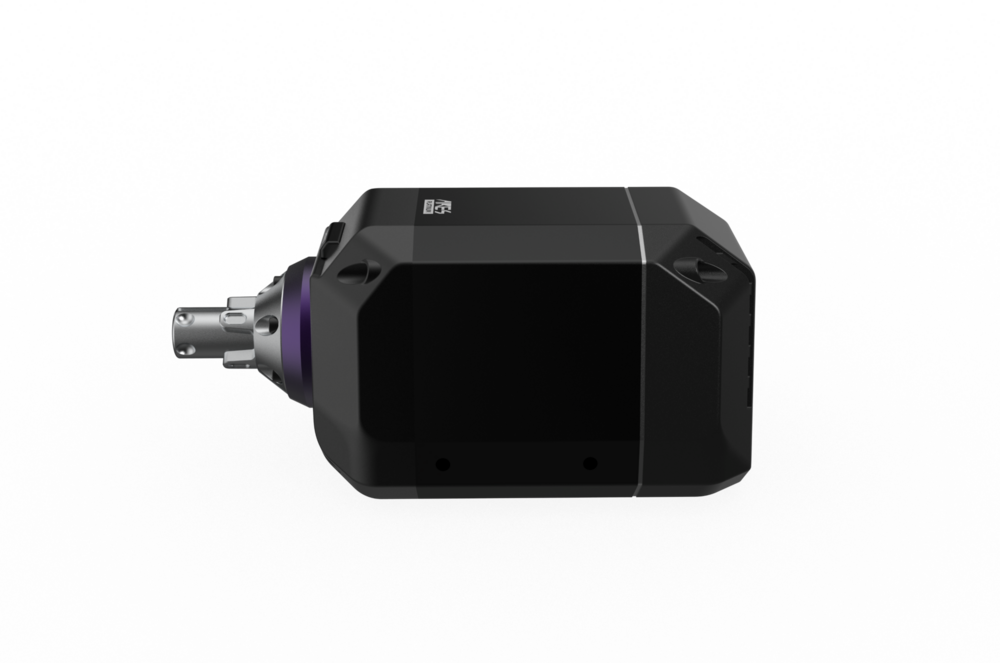

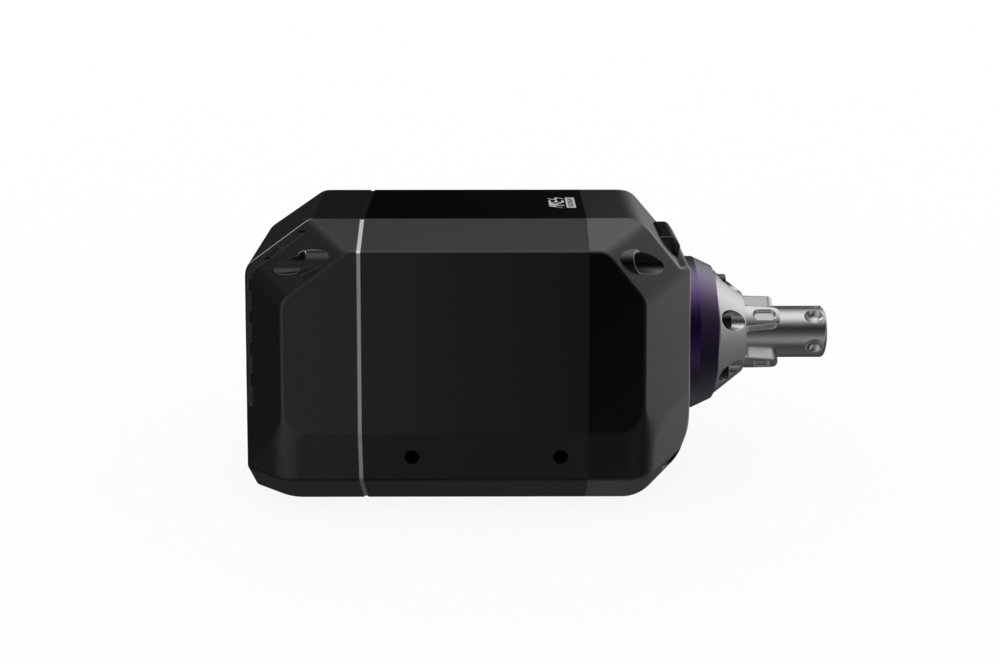

CONSPIT - Ares Platinum 20Nm Wheelbase

The CONSPIT Ares Series Sim-racing Wheelbase offers an unparalleled competitive advantage for sim racers, delivering a highly immersive and realistic driving experience. With its advanced force feedback system and innovative technology, this wheelbase captures every subtle movement with precision. It is designed to meet the unique demands of sim racing, providing superior control, performance, and stability.

Key Highlights

Superior Performance

• High-Speed Processors: Powered by unsymmetric dual processors (170MHz + 168MHz), the Ares series ensures swift, efficient, and stable calculations during gameplay.
• Precision Steering: High-precision optical encoders offer an angular resolution of less than 0.01°, paired with a 23-bit resolution for ultimate accuracy in capturing steering inputs.
• Military-grade Signal Transmission: A 20 million RPM slip ring ensures seamless and interference-free signal transmission, avoiding common issues like electromagnetic interference.

Masterful Control

• Advanced Motor Control: The motor system delivers exceptional stability, efficiency, and precision, ensuring smooth force feedback torque output.
• Impressive Torque Response: Capable of 20Nm/ms torque response, the Ares base displays even the most delicate high-frequency details for a true-to-life experience.

Professional-Grade Force Feedback Algorithm

• Tailored Force Feedback: Developed in collaboration with Open FFBoard, the force feedback system offers professional-grade simulation of real vehicle dynamics, crafted with input from professional drivers and vehicle dynamics engineers.

Optimized for Sim Racing

• Custom-Built Motors: Unlike competitors that use off-the-shelf servo motors, the Ares series features a motor designed from scratch for sim racing, optimizing key parameters like torque ripple, response, and cogging torque for smoother, more precise feedback.
• Dual Skewed Pole Design: The stator and rotor's dual skewed pole design reduces torque ripple, vibration, and noise, ensuring smoother handling and excellent NVH (Noise, Vibration, and Harshness) performance.

Ultra-High Torque Density

• Compact Powerhouse: The Ares motor delivers immense power in a compact form, thanks to high magnetic permeability cores, powerful NdFeB magnets, and optimized air gap ratios. This results in high torque density and powerful output.
• Minimized Torque Ripple: The motor's electromagnetic design, featuring high slot-pole matching and precise magnetic circuit architecture, ensures ultra-smooth steering with minimal torque ripple.

Design and Innovation

Advanced Thermal Management

• Real-time Monitoring: Continuous monitoring of system temperatures guarantees stable operation and superior thermal management for long-duration races.

Lightweight Industrial Design

• Sleek Profile: Designed with a visually lightweight aesthetic, the compact and sleek construction enhances both visual appeal and performance.

High-Quality Materials

• Durable Build: The main body is constructed from aerospace-grade aluminum, ensuring durability and high strength.
• Efficient Heat Dissipation: The advanced heat dissipation system ensures reliability even during extended endurance races.

Advanced Manufacturing Techniques

• Precision Engineering: Multiple forming, machining, and surface treatments provide the wheelbase with a superior tactile and visual experience.

POGO Module for Expansion

• Future-Proof Design: Magnetic contacts at the front allow for future expansions and quick installation of additional functional components.

High Safety Standards

• Safety Mode: A specialized safety mode ensures safe use for drivers and children alike, making the Ares series suitable for all users under supervision.

Conspit Link 2.0 Software

• Intuitive Controls: Easily configure the base, monitor system status, and create custom presets using the Conspit Link 2.0 software. It includes pre-configured settings from professional drivers, with specialized presets coming soon.

CDP Quick Release System

• Zero Play Over Time: The CDP quick release system incorporates a clasp and ball design inspired by Formula racing cars. Constructed from CNC-machined 7075 aluminum alloy, it delivers high strength and eliminates wear issues, ensuring zero play even with prolonged use

Specifications of the Ares Platinum 20Nm Wheelbase

• • Model: Ares Platinum 20Nm Wheelbase
  • Dimensions: 134 x 150 x 287 mm
  • Net Weight: 7.9 kg
  • Maximum Torque: 20NM
  • Encoder: High-precision optical encoders
  • Motor: Dual Skewed Pole Design
  • Resolution: 23-bit
  • Quick Release: CONSPIT ball-type single locking (CDP) quick release
  • Mounting Holes: M6 x 4 (bottom), M8 x 4 (sides)
  • Platform: PC (Windows)
  • E-Stop: Optional
  • Connection: USB
  • Cable: USB 3.0
  • Software: CONSPIT Link 2.0
