SIMRIG SR1

The SIMRIG SR1 is developed for maximum immersion and ease of use.

0 Reviews
€ 3.449,00
Price per unit
On demand
remove add
Order
Wishlist
SIMRIG SR1

Product description

The SIMRIG SR1 is the first motion system of SIMRIG. Since 2018 it has sold to all corners of the world. All units are designed, built, and tested by SIMRIG in Sweden.

The SIMRIG SR1 is developed for maximum immersion and ease of use. With it's small footprint it mounts to your existing aluminium extrusion rig. The electronics control unit is small enough to mount under your seat. It connects directly to your computer through USB. The power supply operates on 100-240 V mains.

The system features three degrees of freedom (3-DOF): pitch, roll, and heave. With pitch and roll the system can simulate acceleration, braking, and turning. It can also follow the track geometry; for example by pitching forwards while driving downhill. With heave the system can push the rig upwards when hitting curbs and bumps in the road.

The SIMRIG SR1 is accompanied by SIMRIG Control Center. This software control the motion system by interpreting the position and acceleration of the simulated vehicle. It supports all major simulation titles.

Mounting Options

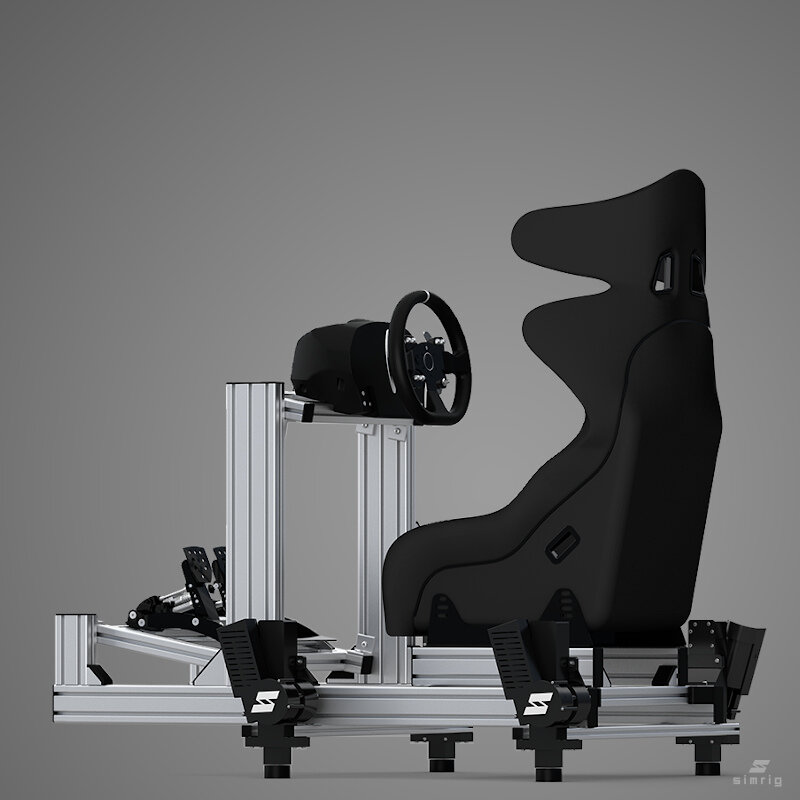

SIMRIG SR1 is compatible with aluminum rigs built using 60x20, 40x40, and 80x40 mm aluminum extrusions. Other sizes are available on request.

Maximum Load
For best performance, longevity, and user experience, the maximum load is set to 175 kg. The maximum load includes the rig, the driver, other peripherals, and additional weight actuated by the SIMRIG SR1 motion system.

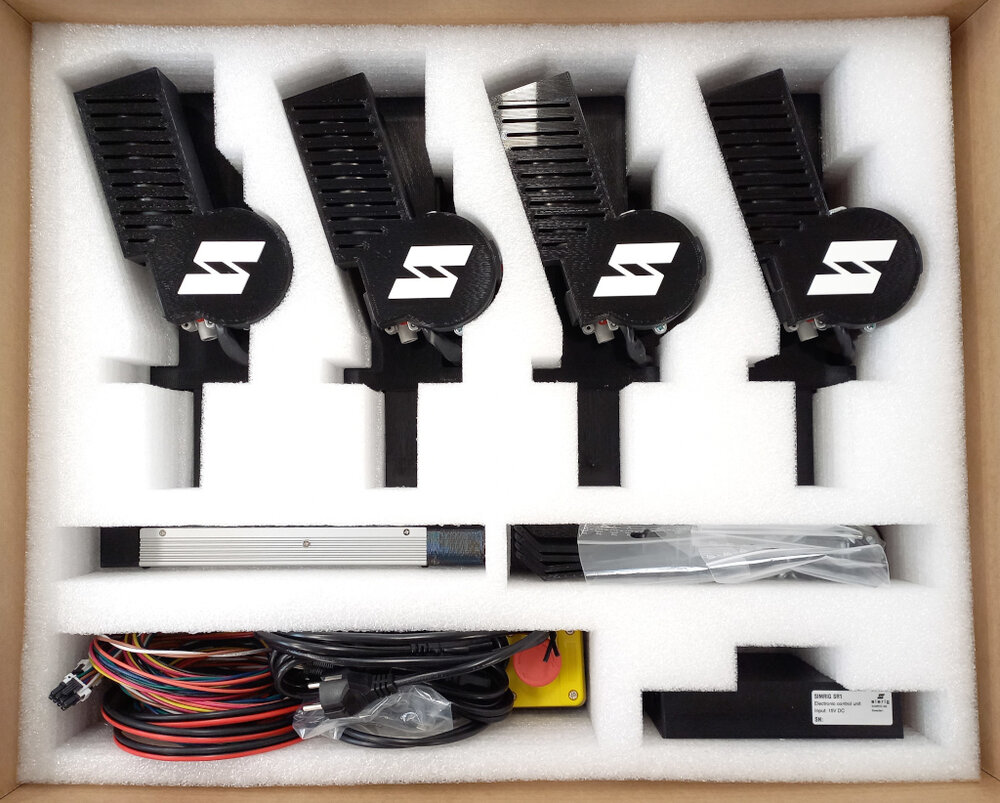

IN THE BOX

A complete motion system:

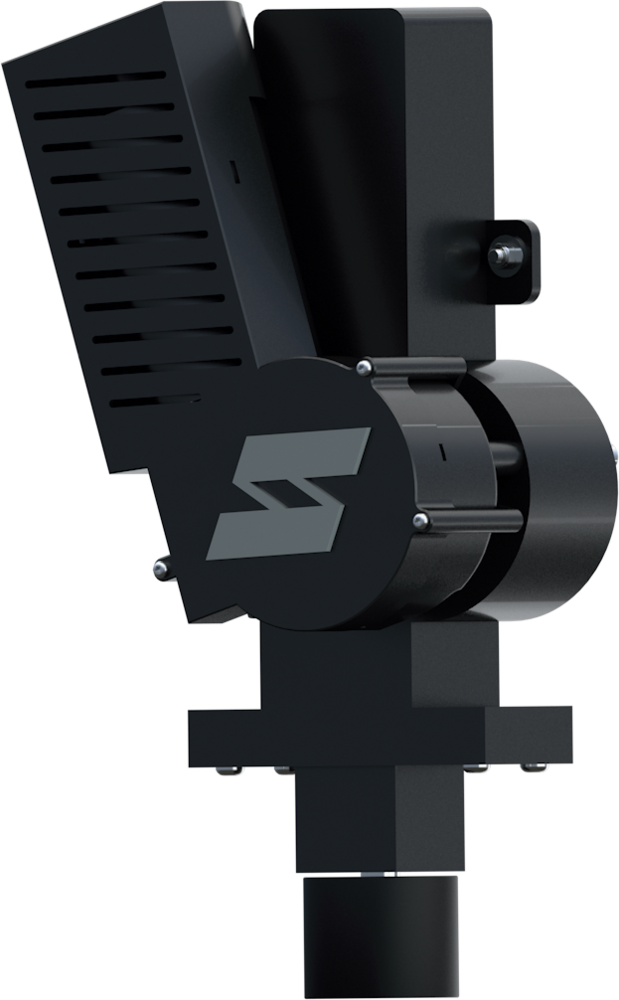

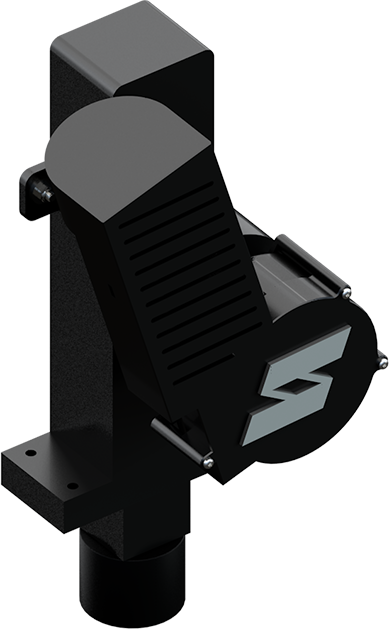

  • 4x SIMRIG SR1 Linear Actuator
  • 1x SIMRIG SR1 ECU
  • 1x 500W Power Supply (100-240 V at 50-60 Hz)
  • 1x Emergency Stop
  • 4x Linear Actuator Cable (0.8m)
  • 1x Power Cable for ECU (2m)
  • 1x Power Cable (C13)
  • 1x USB Cable (3m)
  • 1x SIMRIG Control Center (download)
  • Assorted screws and T-nuts

And mounting brackets for your rig.

TECHNICAL SPECIFICATION
Max load *1                     175 kg
Travel                                 70 mm
Speed                                 100 mm/s (at max load)
Accuracy                            0.1 mm
Latency                              7 ms
Power *2                           500 W
Interface                            USB 2.0 (Mini-B)
Operating system             Windows 10/11 (64-bit)
Mounting *3                     Aluminium rig 60x20, 40x40, 80x40 mm and others
Cooling *4                         Automatic fan
Emergency stop                Included
Package dimensions        74 cm x 58 cm x 19 cm
Package weight                 20 kg

  1. Including driver and rig
  2. Power supply operates around the world (100-240 V, 50/60 Hz)
  3. See documentation for details regarding mounting options
  4. Fan actives only when necessary

Product specification

Motion specifications

Max load 175 kg
Power supply 500 W
Travel 70 mm
Speed 100 mm/s (at max load)
Accuracy 0.1 mm
Latency 7 ms
Interface USB 2.0 (Mini-B)
Operating system Windows 10/11 (64-bit)
Mounting Aluminium rig 40x40, 80x40 mm and others
