SIMRIG SR3

What sets the SIMRIG SR3 apart is its ability to handle a substantial load capacity.

0 Reviews
4.780,00
Price per unit
On demand
remove add
SIMRIG SR3

Product description

The SIMRIG SR3 has come to life by the means of continuous improvement and customer feedback. Five years, that's how long it has taken to design the SIMRIG SR3. All that we learned over the years by designing, manufacturing, and using our products is represented in the SIMRIG SR3. Many of it's very best design features have been carried back to the SIMRIG SR1 and SR2.

What sets the SIMRIG SR3 apart is its ability to handle a substantial load capacity. Responding to the community's request for a system that can support heavier setups, the SIMRIG SR3 boasts a total load capacity of 250 kg. This significant improvement opens up new possibilities for users to customize their rigs with heavier seats, additional peripherals, and more, without compromising on performance.

Installation of the SIMRIG SR3 is a straightforward, plug-and-play process, designed to get you up and racing with minimal downtime. The package includes everything needed for a complete setup: actuators, the ECU, a power supply, and all necessary cables and hardware. It also comes with the SIMRIG Control Center software, which is the interface through which users can customize their motion feedback to match each vehicle's unique characteristics across all major simulation titles.

MOUNTING

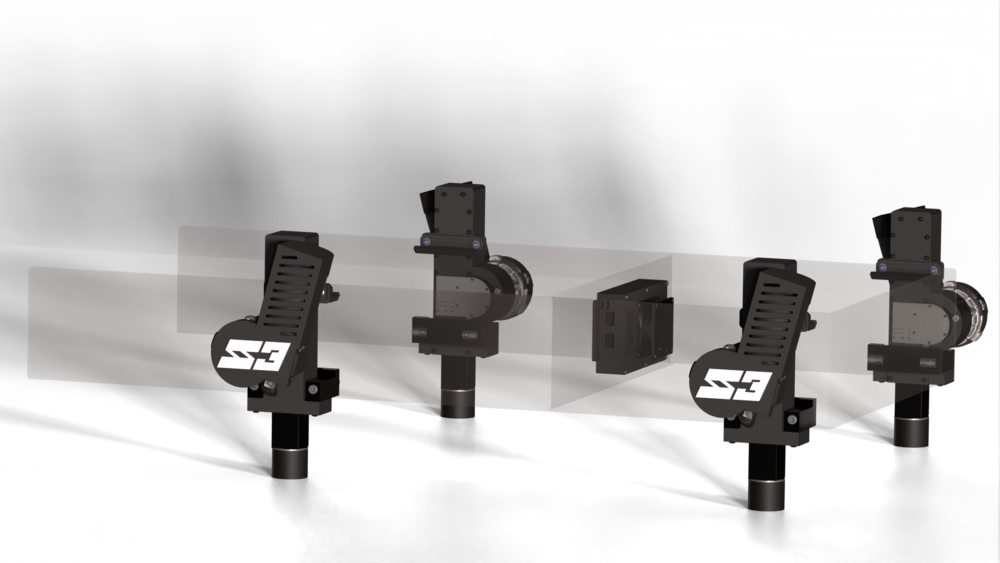

The SIMRIG SR3 is compatible with most aluminium extrusion rigs. We provide off-the-shelf solutions for the most common sizes: 40x40, 80x40, 120x40, 160x40 mm, and others. More sizes are available on request.

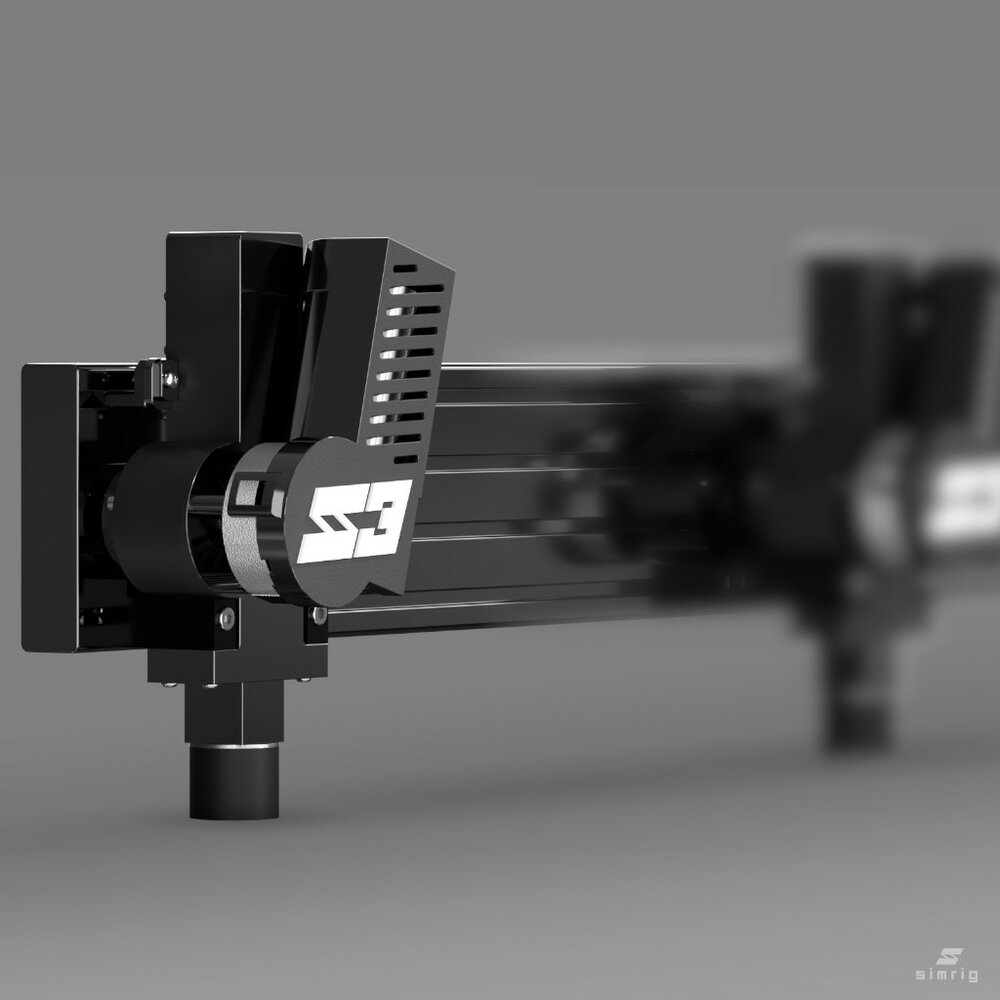

With the introduction of the SIMRIG SR3 we are also adding a new mounting system: the EasyBracket. It is now possible to mount the actuators directly to the sides of an aluminium extrusion rig. The EasyBracket comes pre-attached to the actuator, allowing for easy and quick installation.

All actuator cables are now black, making them easier to hide under the rig.

PERFORMANCE
At its core, the SIMRIG SR3 is powered by industrial-grade motors, ensuring robustness and longevity. The system can actuate up to 250 kg. This includes the rig, the driver, and peripherals. The necessary power is seamlessly supplied by a fan-less 1000 W power supply; that connects to a normal household wall socket.

Despite its powerful performance, the SIMRIG SR3 maintains a compact footprint. The actuators are designed to attach directly to your rig, while the ECU is compact enough to fit neatly under your seat. The power supply can be conveniently placed next to your computer, ensuring that the SIMRIG SR3 enhances your racing setup without imposing on your space.

The SIMRIG SR3 is not just about raw performance; it's about enhancing the user experience. It comes with the SIMRIG Control Center software, which is optimized to remove undue latency. The system latency is negligible at only 7 milliseconds.

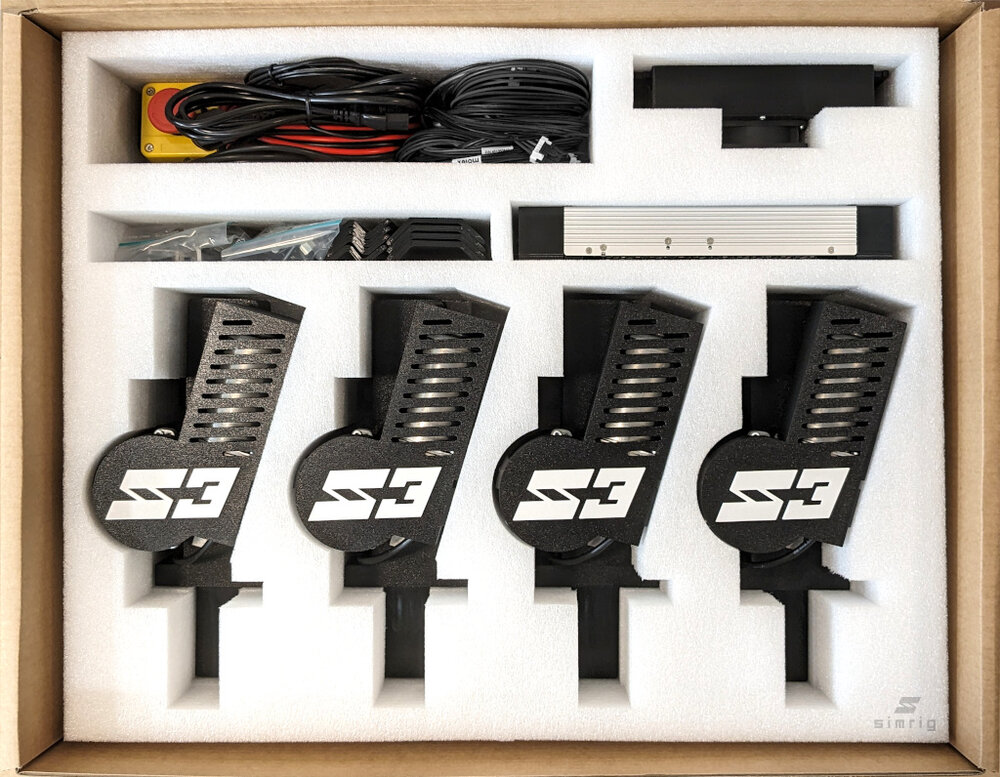

IN THE BOX

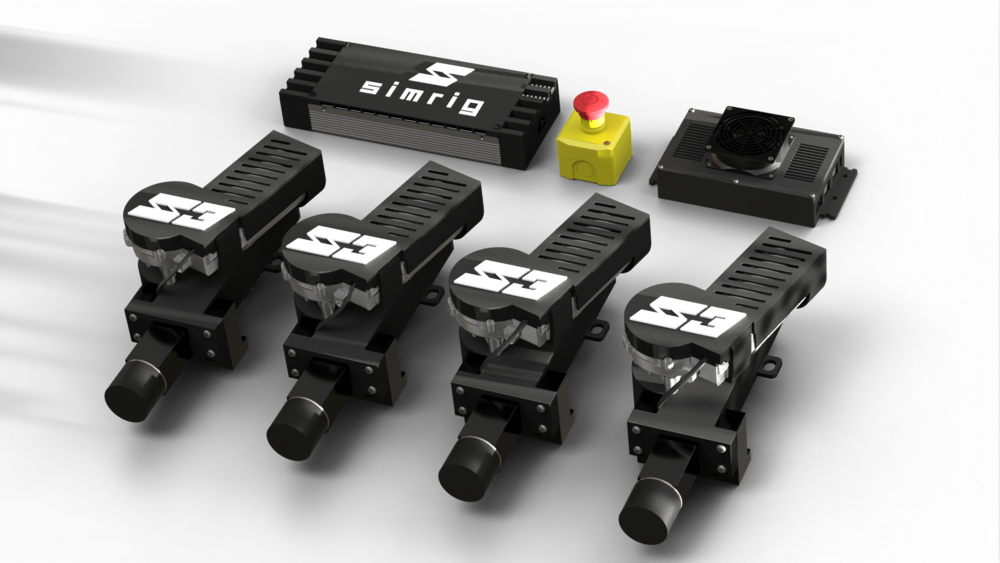

A complete motion system:

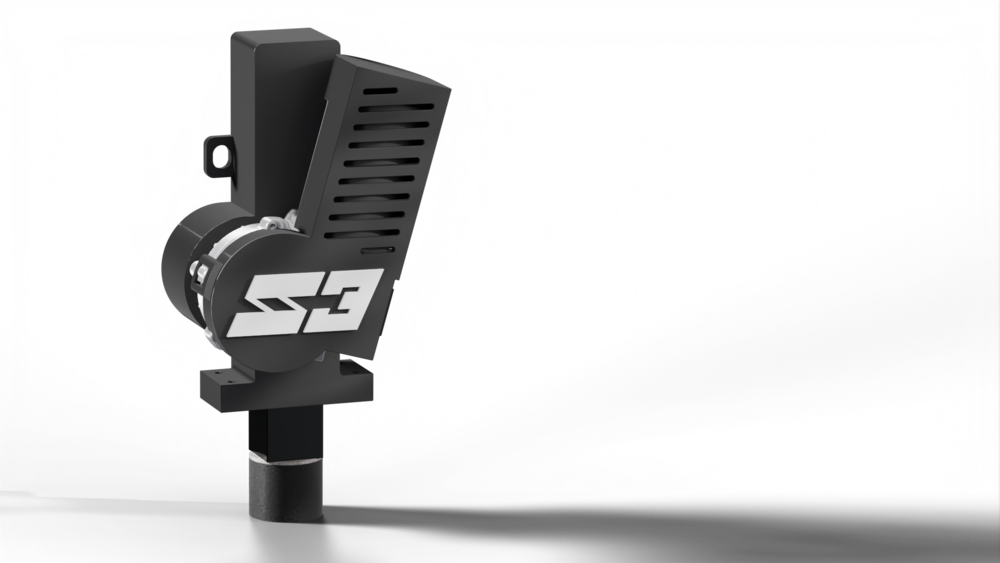

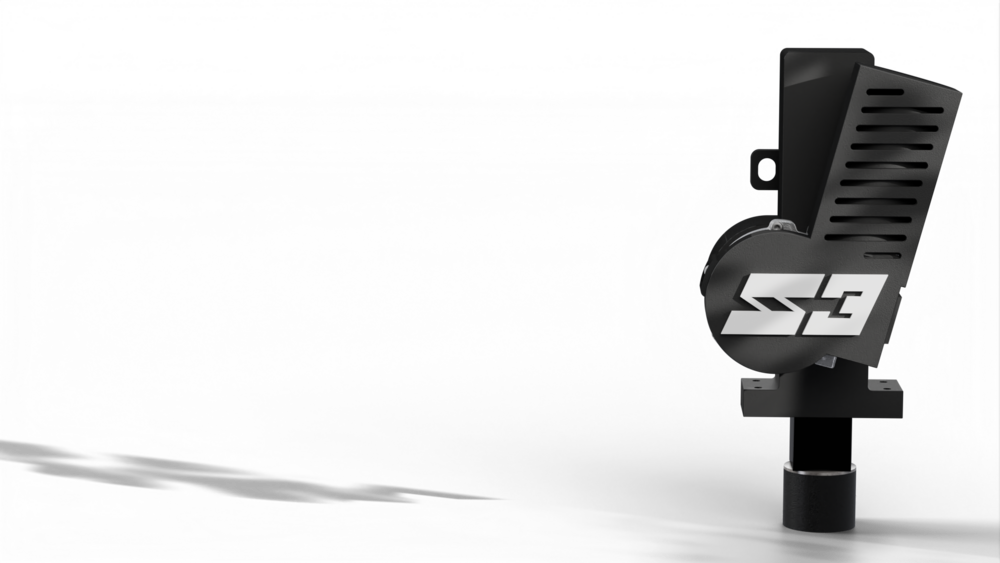

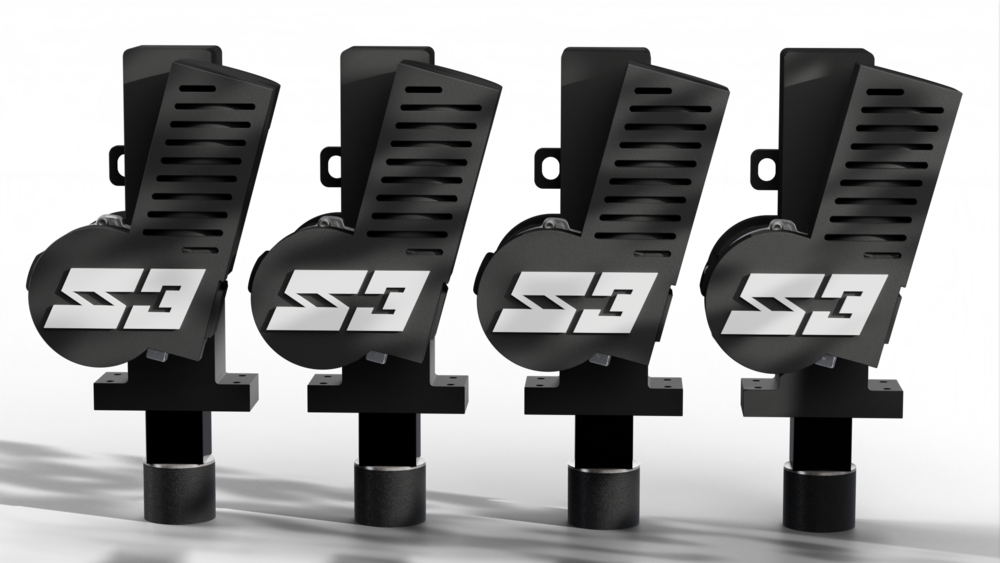

4x SIMRIG SR3 Linear Actuator
1x SIMRIG SR3 Electronic Control Unit
1x 1000W Power Supply (100-240 V at 50-60 Hz)
1x Emergency Stop
4x Linear Actuator Cable (0.8m)
1x Power Cable for ECU (2m)
1x Power Cable (C13)
1x USB Cable (3m)
1x SIMRIG Control Center (download)
Assorted screws and T-nuts
And mounting brackets for your rig.

TECHNICAL SPECIFICATION

Max load *1                      250 kg
Travel                                  70 mm
Speed                                  100 mm/s (at max load)
Accuracy                             0.1 mm
Latency                               7 ms
Power *2                            1000 W
Interface                             USB 2.0 (Mini-B)
Operating system             Windows 10/11 (64-bit)
Mounting *3                     Aluminium rig 40x40, 80x40, 120x40, 160x40 mm and others
Cooling *4                          Automatic fan
Emergency stop                Included
Package dimensions         74 cm x 58 cm x 19 cm
Package weight                 22 kg

  1. Including driver and rig
  2. Power supply operates around the world (100-240 V, 50/60 Hz)
  3. See documentation for details regarding mounting options
  4. Fan actives only when necessary

Product specification

Motion specifications

Max load 250 kg
Power supply 1000 W
Travel 70 mm
Speed 100 mm/s (at max load)
Accuracy 0.1 mm
Latency 7 ms
Interface USB 2.0 (Mini-B)
Operating system Windows 10/11 (64-bit)
Mounting Aluminium rig 80x40, 100x40, 120x40, 160x40 mm and others
