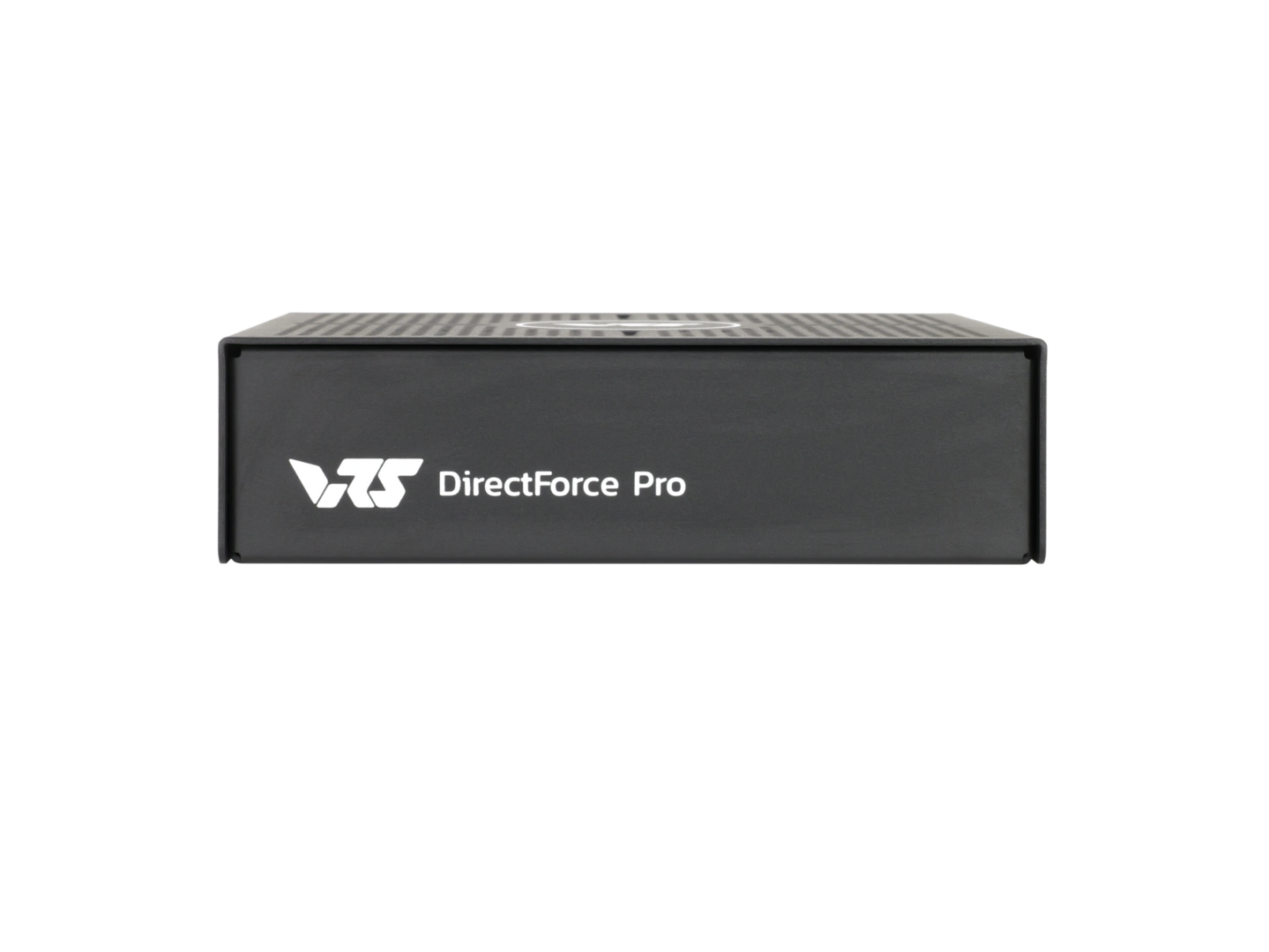

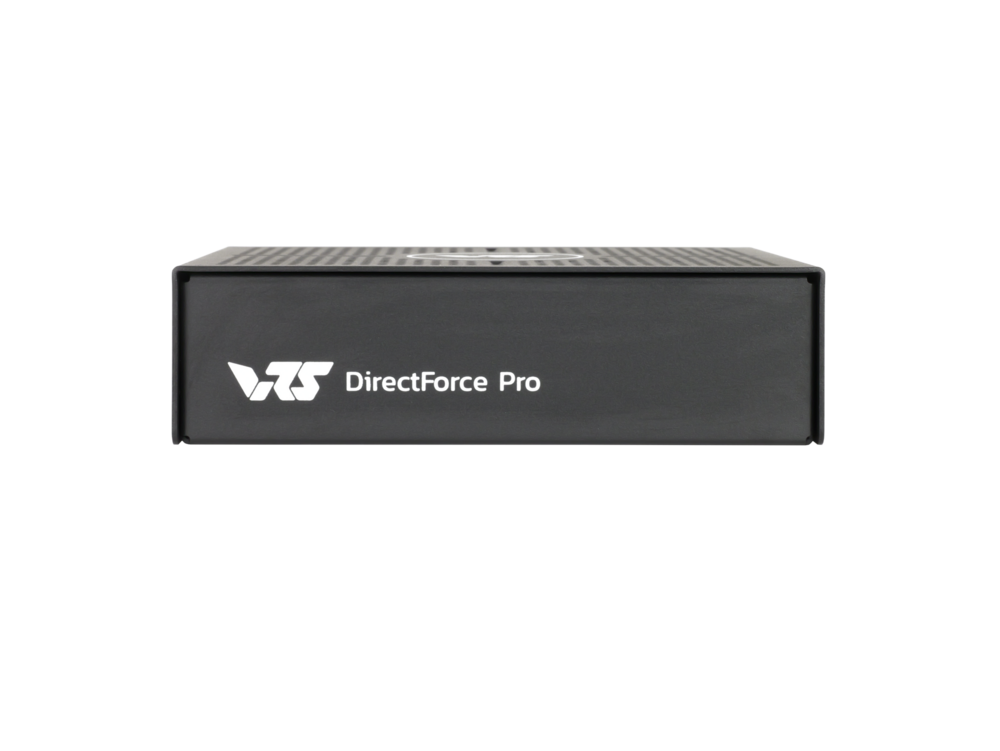

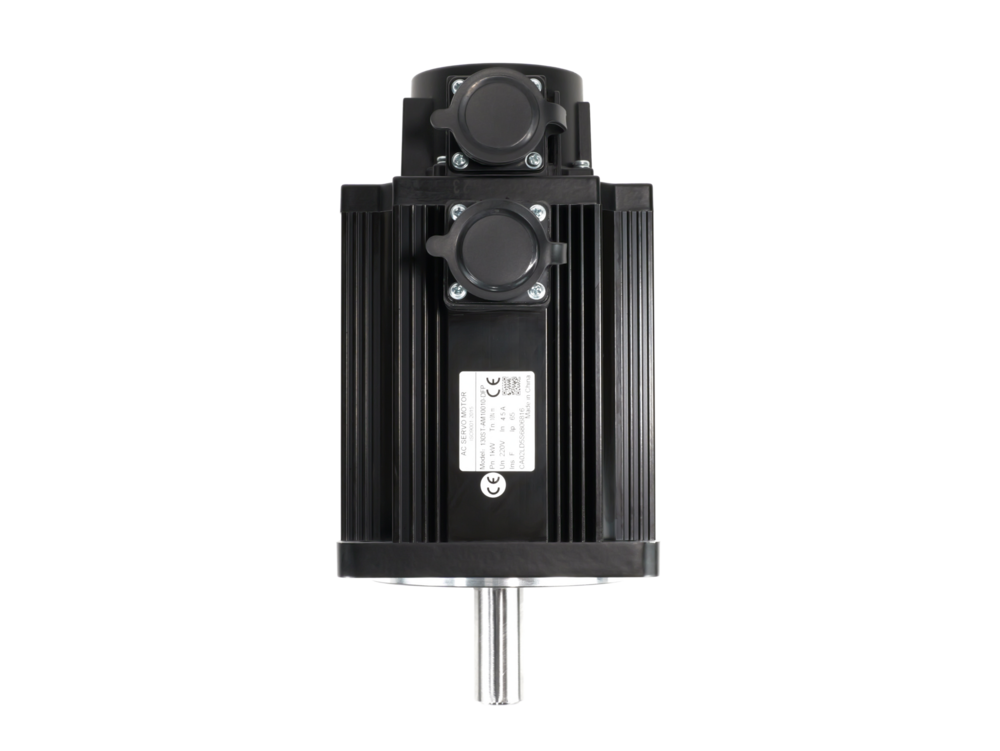

VRS DFP20 Wheelbase

• Platform: PC
• FFB Drive System: Direct Drive

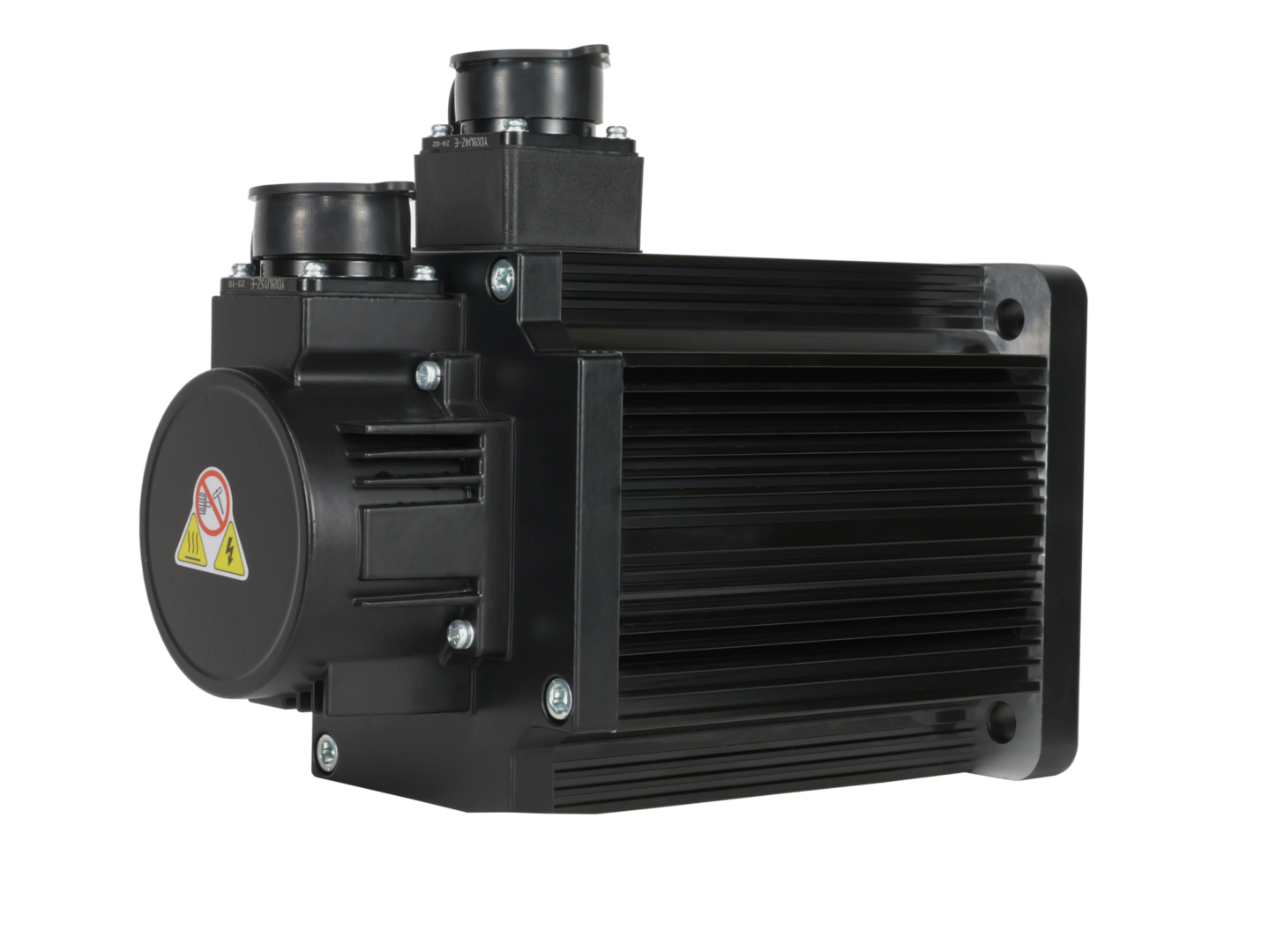

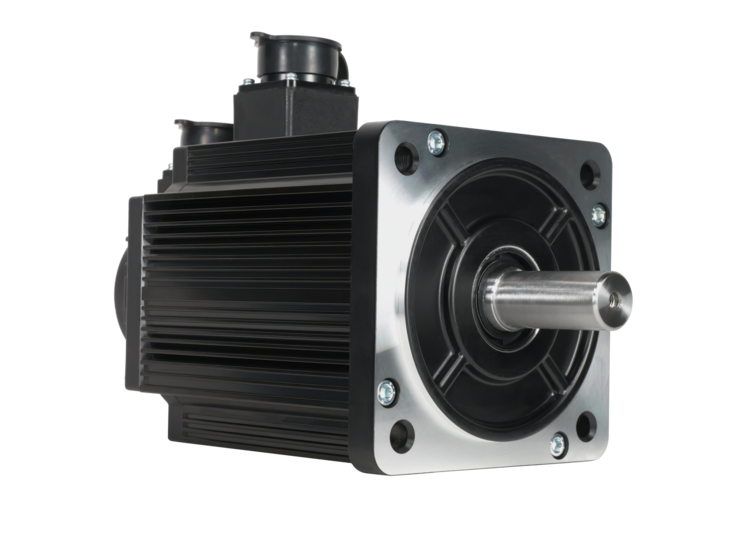

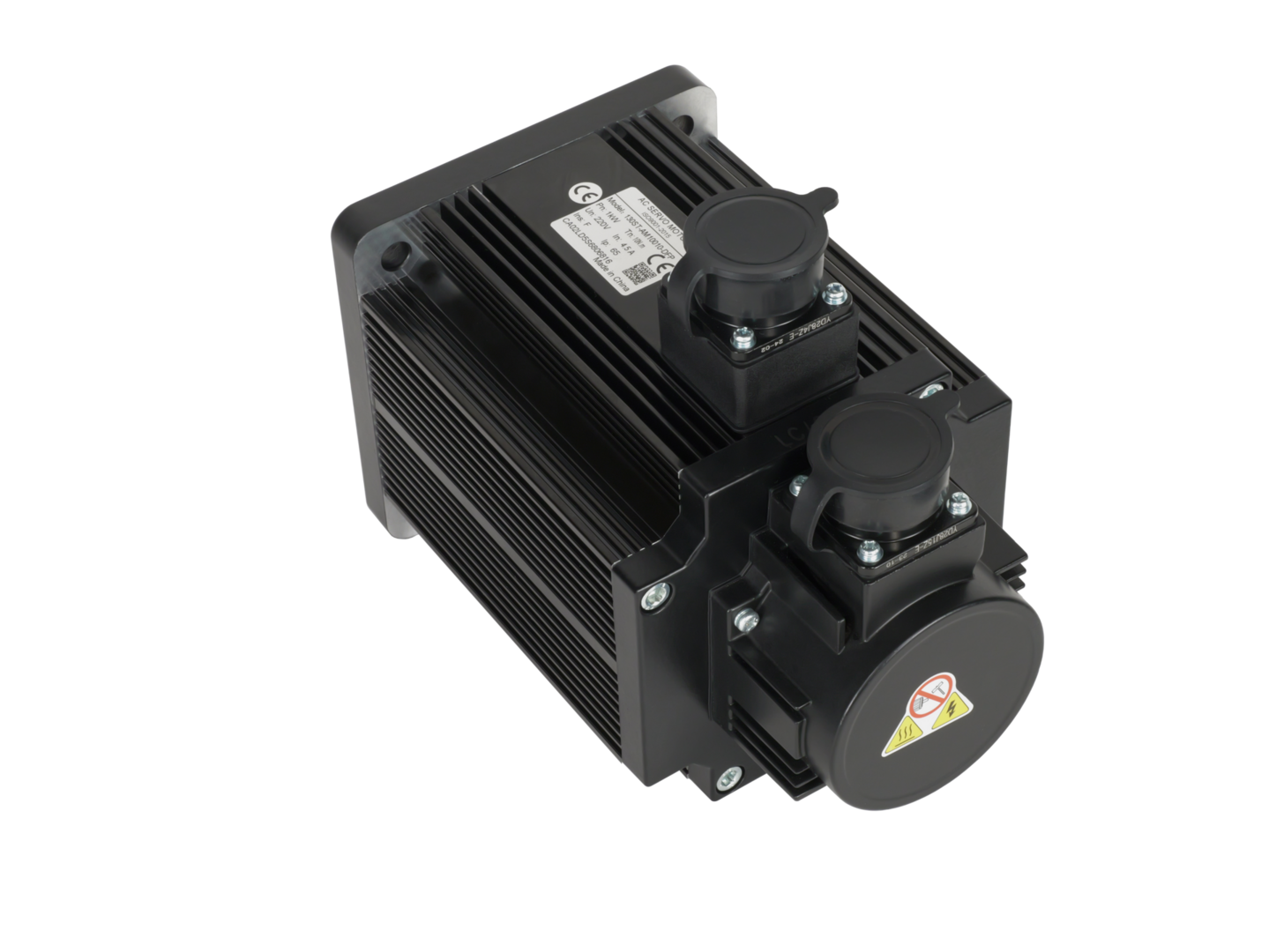

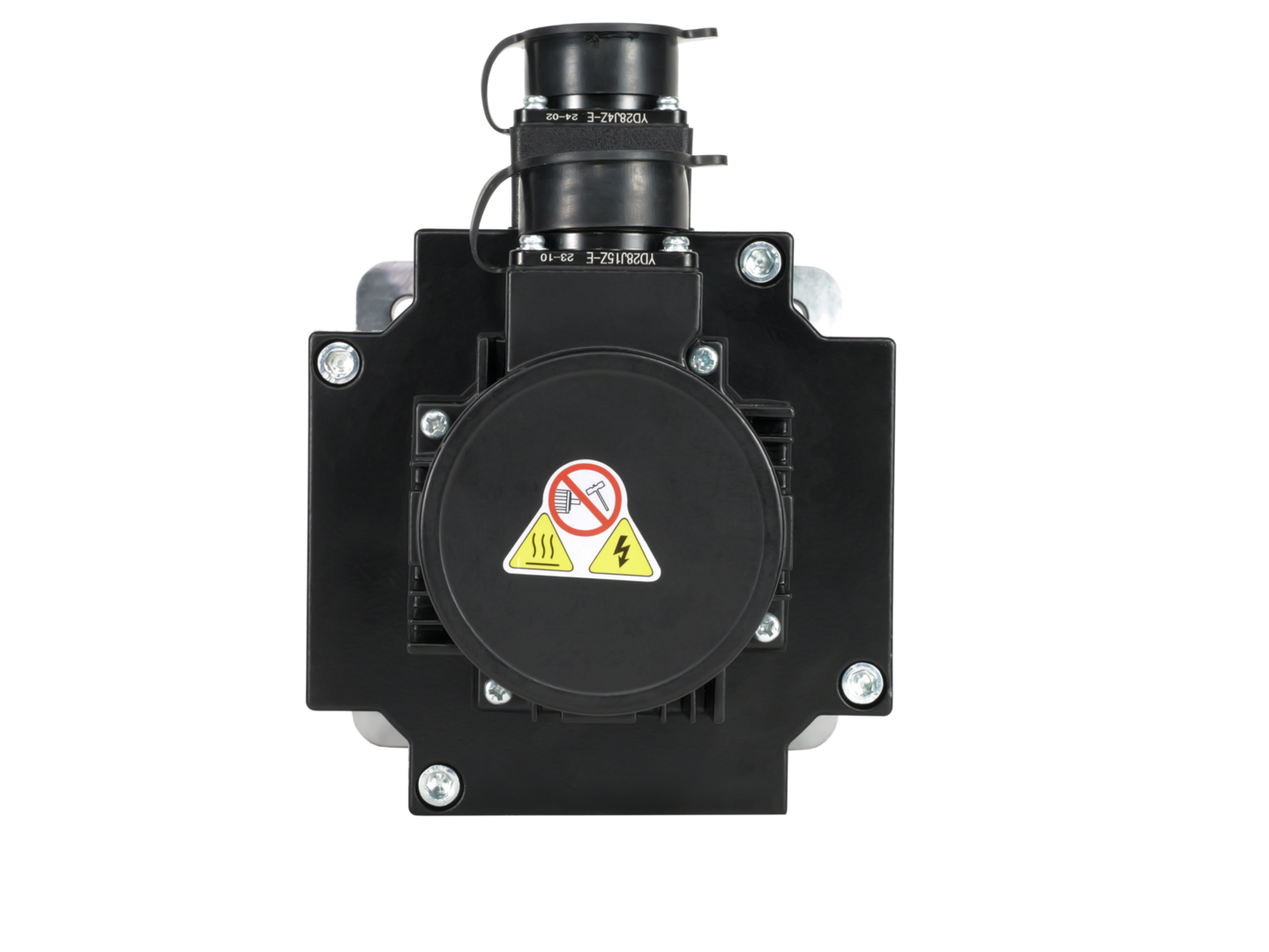

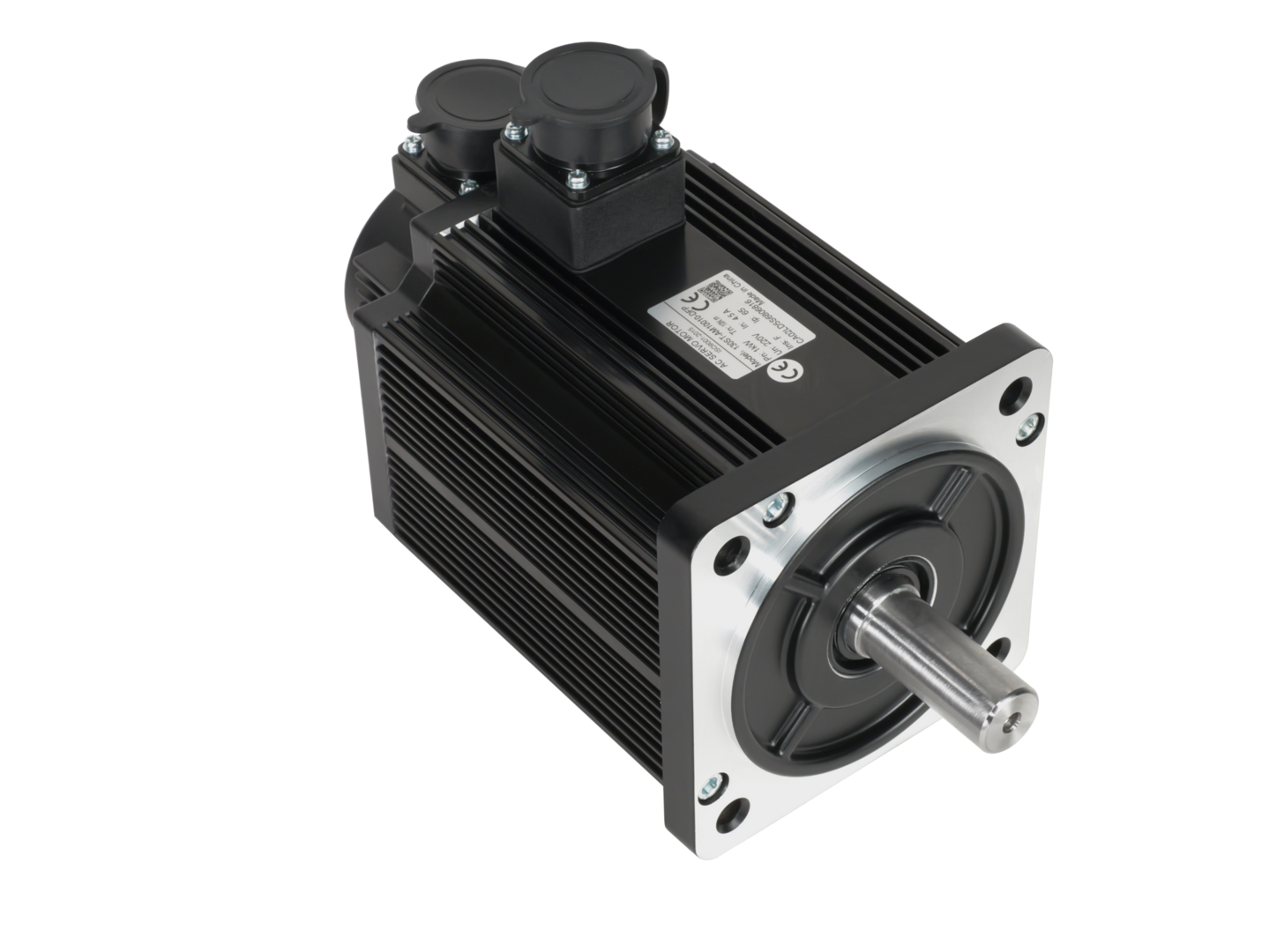

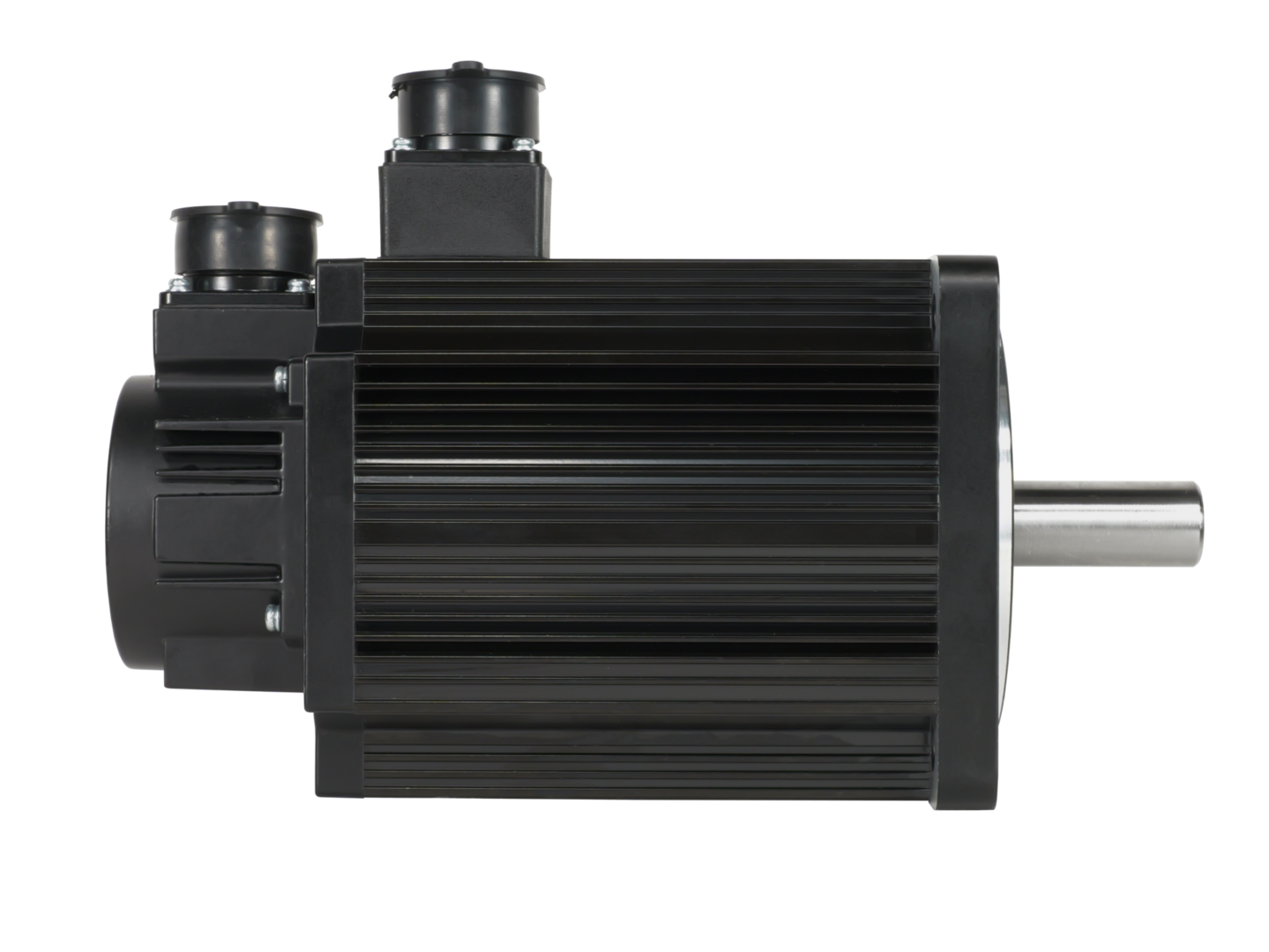

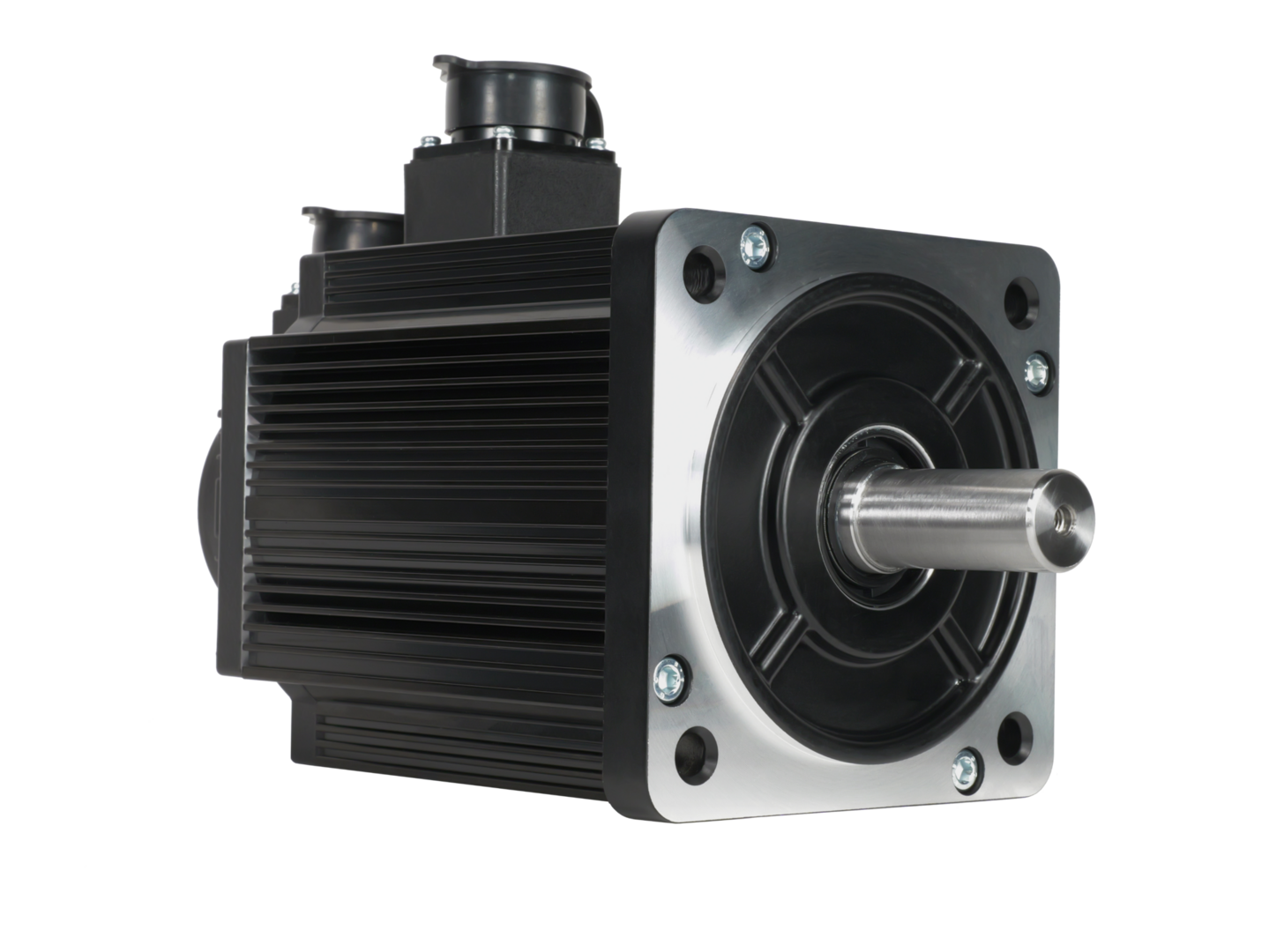

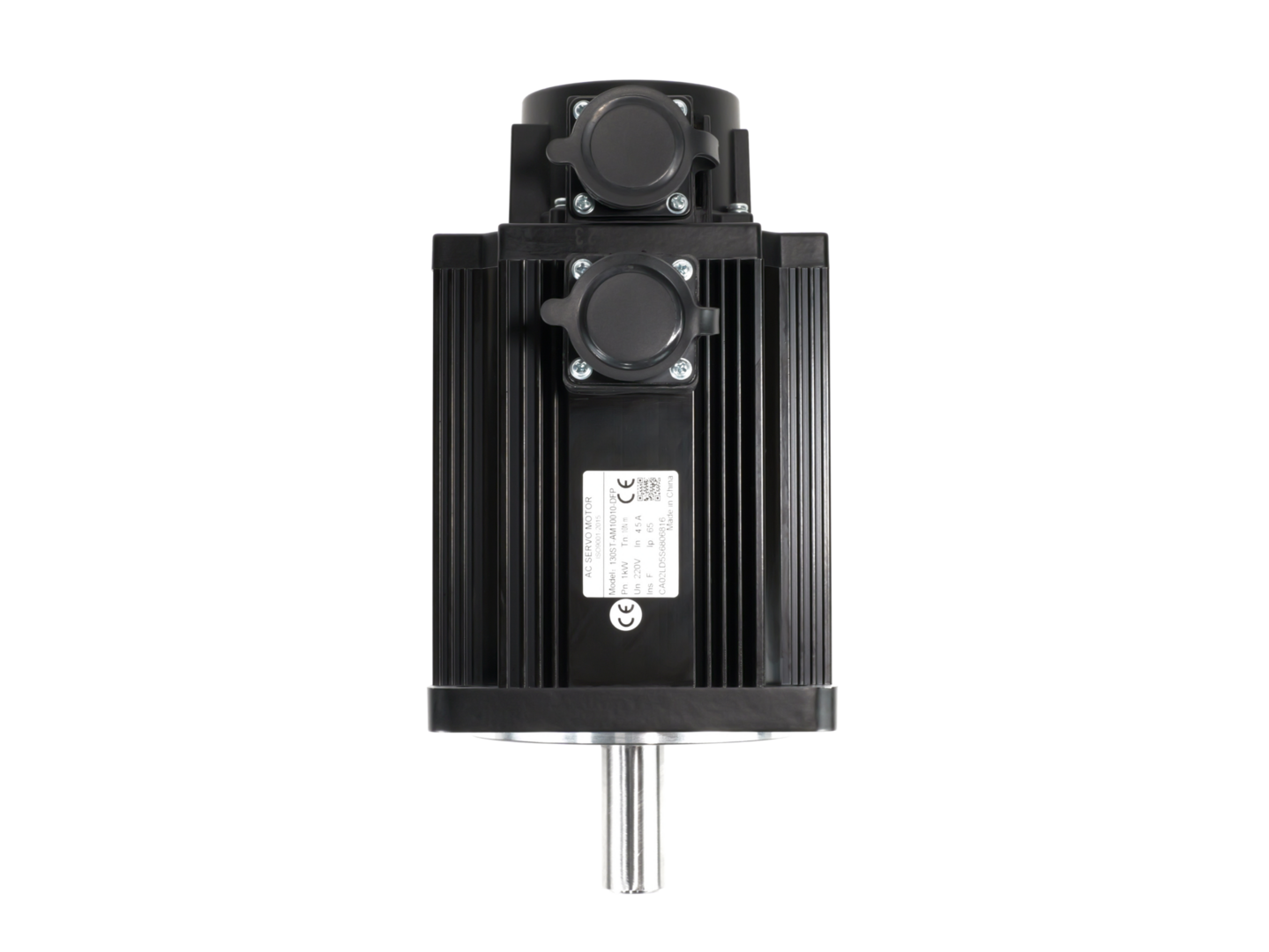

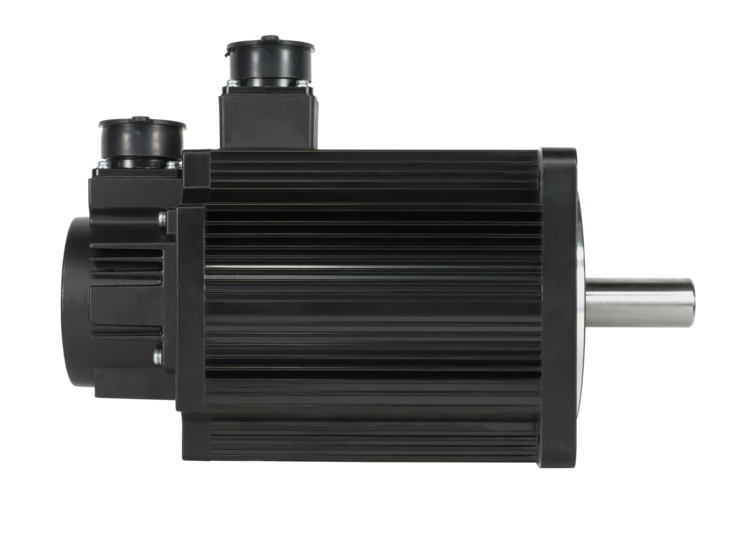

• Motor Type: 4-pole MIGE motor
• Communication Method: USB
• Max Wheel Rotation: Software defined, configurable +/- 90° to +/- 1080°
• Peak Torque: 20 Nm
• Peak Power: 400 W
• Input Voltage: 110-220V AC, internal
• USB Refresh Rate: 1000 Hz
• Encoder Resolution: 4194304 (22-bits)
• Indicator: Yes (2 x LEDs on RJ45 connector)
• App Functions: Supported
• Quick Release: Supported
• Connection Ports: Power DC input, USB B, RJ45 safety stop connector
• Mounting Method: Front mount

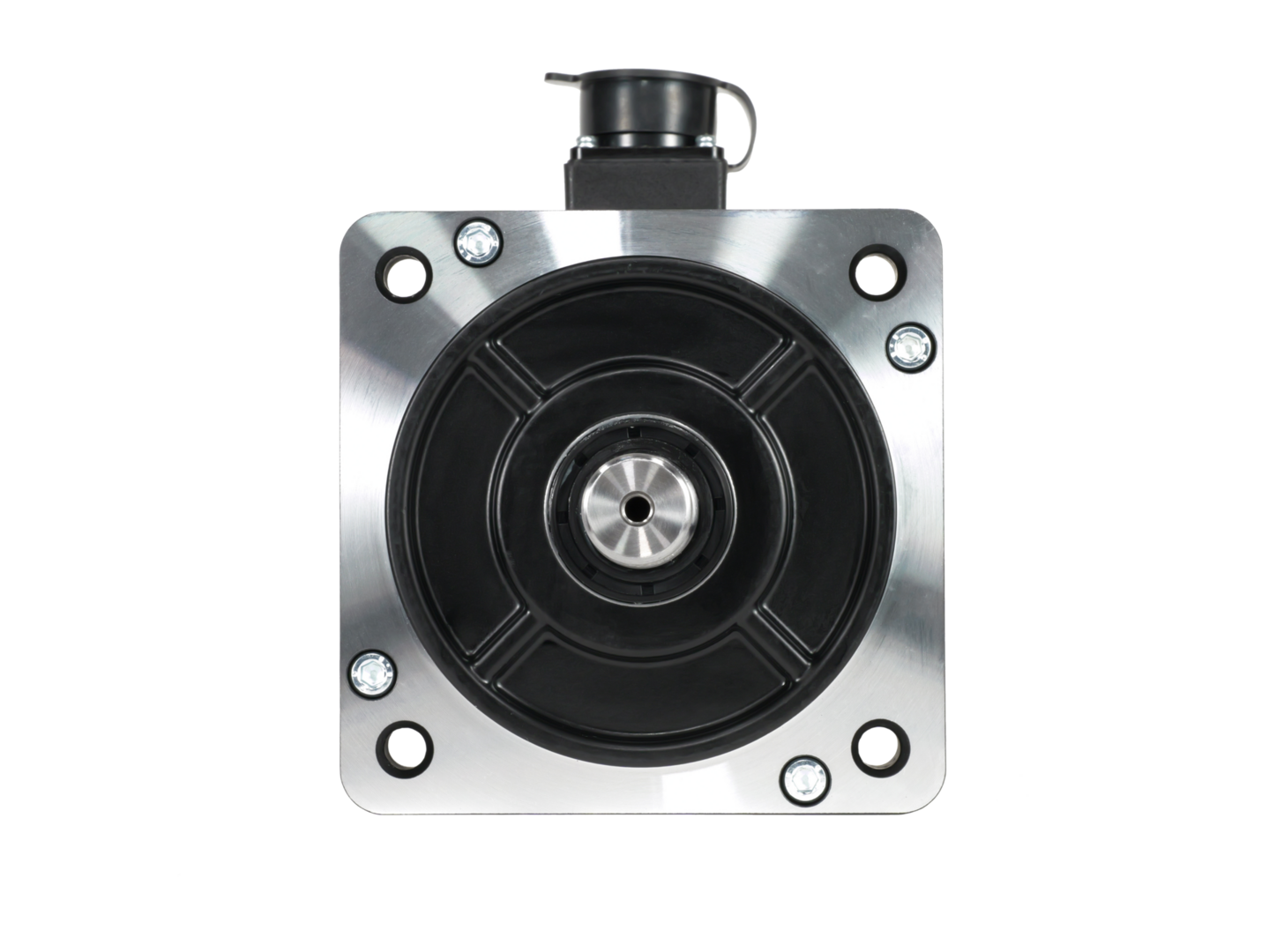

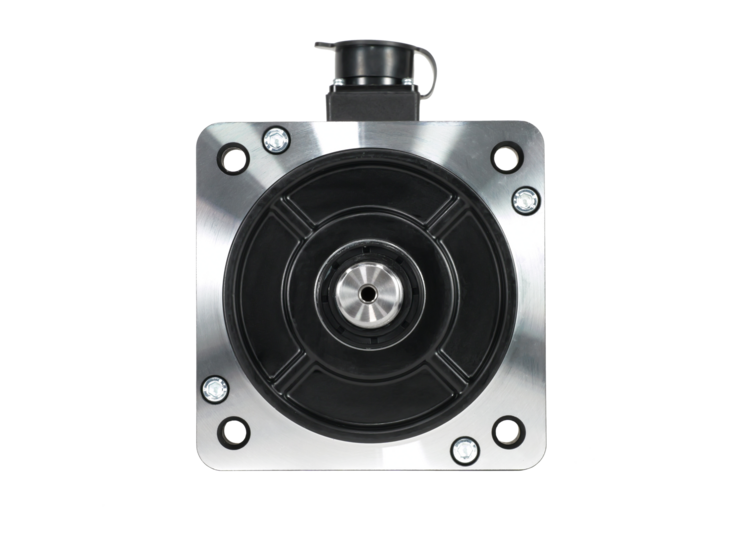

• Mounting Holes: 4 x 9 mm holes on the front flange (not threaded - requires a screw and a nut to attach)
• Firmware Update: Applicable
