VRS Upgradable Torque uDFP20 Wheelbase
Upgrade to a higher torque at any time - once you receive your wheelbase, download our DirectForce Config Tool to activate it with your purchase code. From there you will be able to purchase higher torque levels whenever you like (you only pay the difference for the upgrade). Once you unlock a torque level, you have permanent access to it.

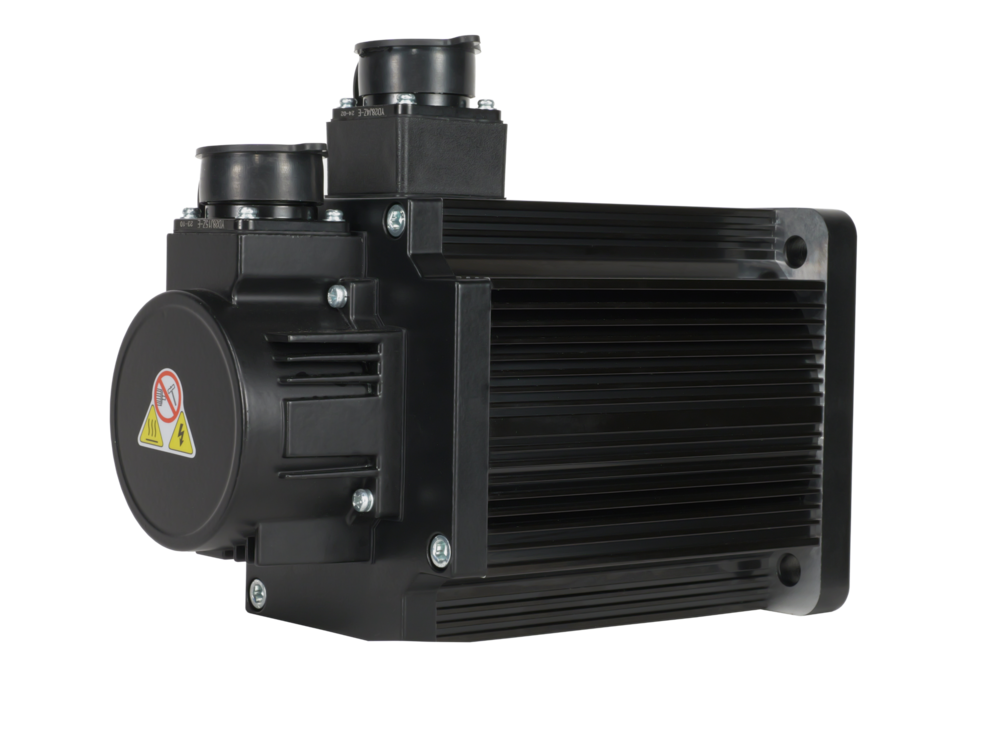

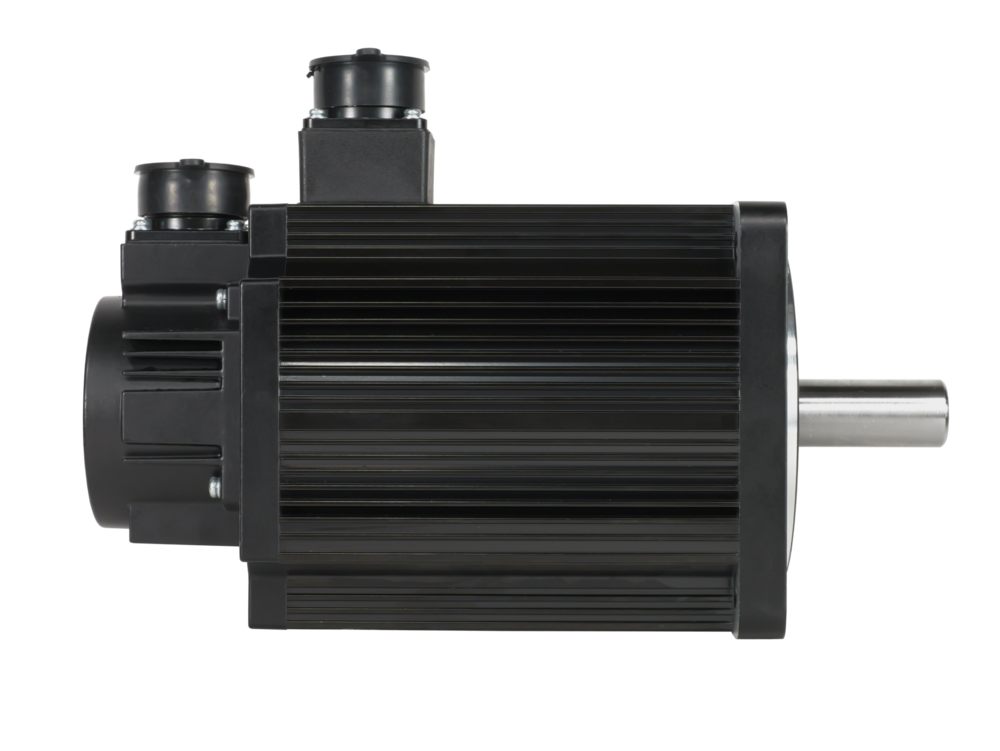

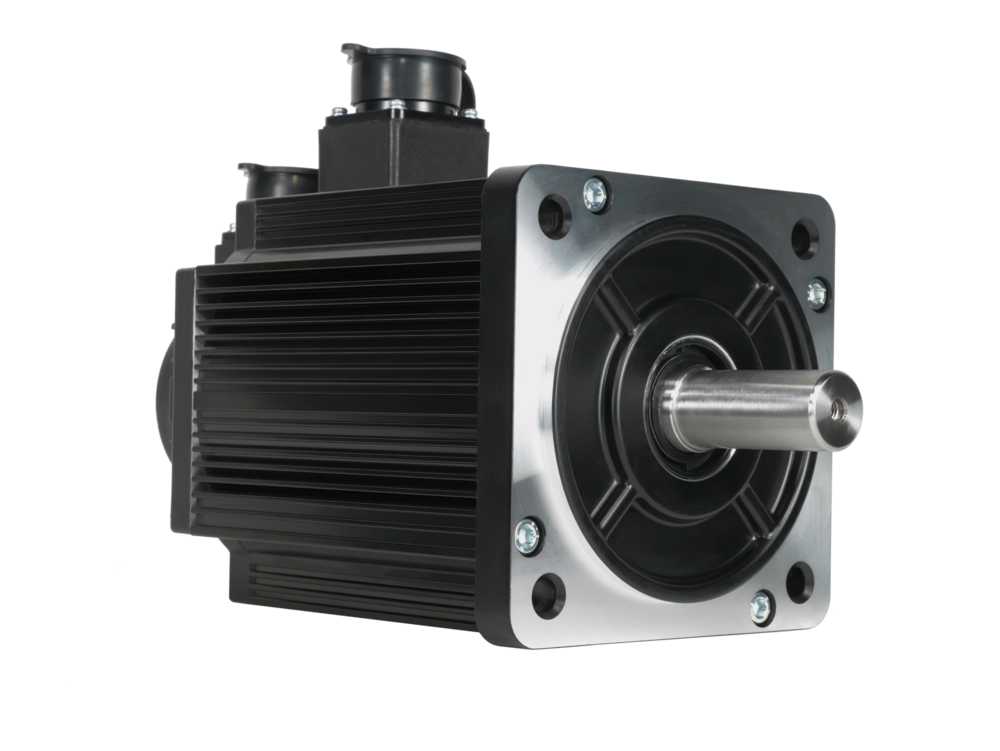

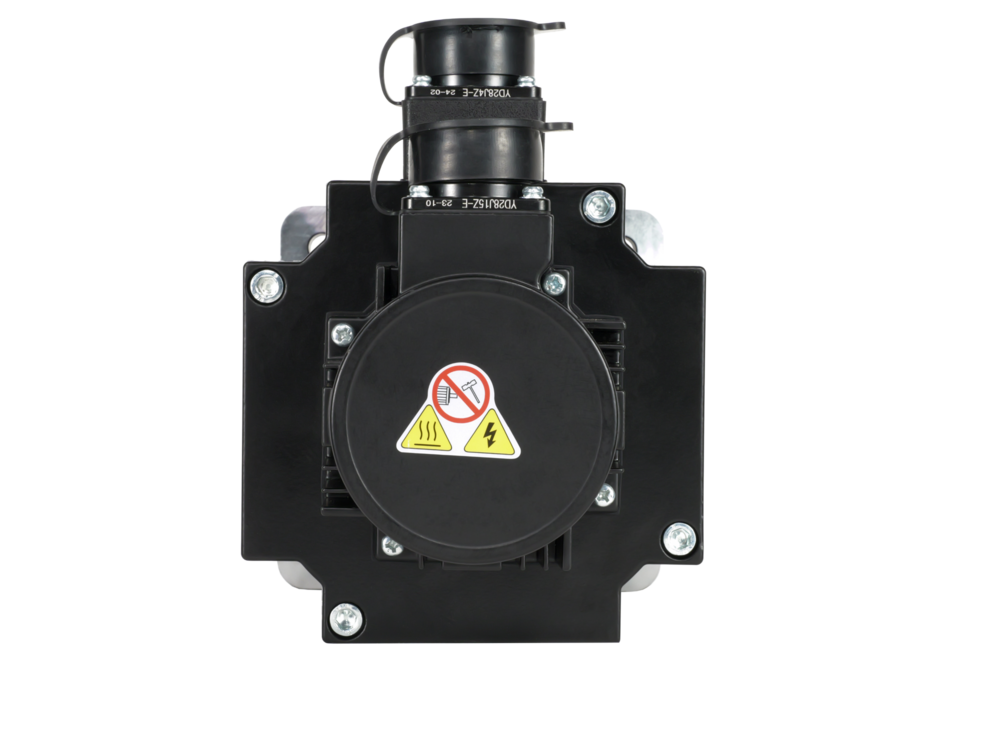

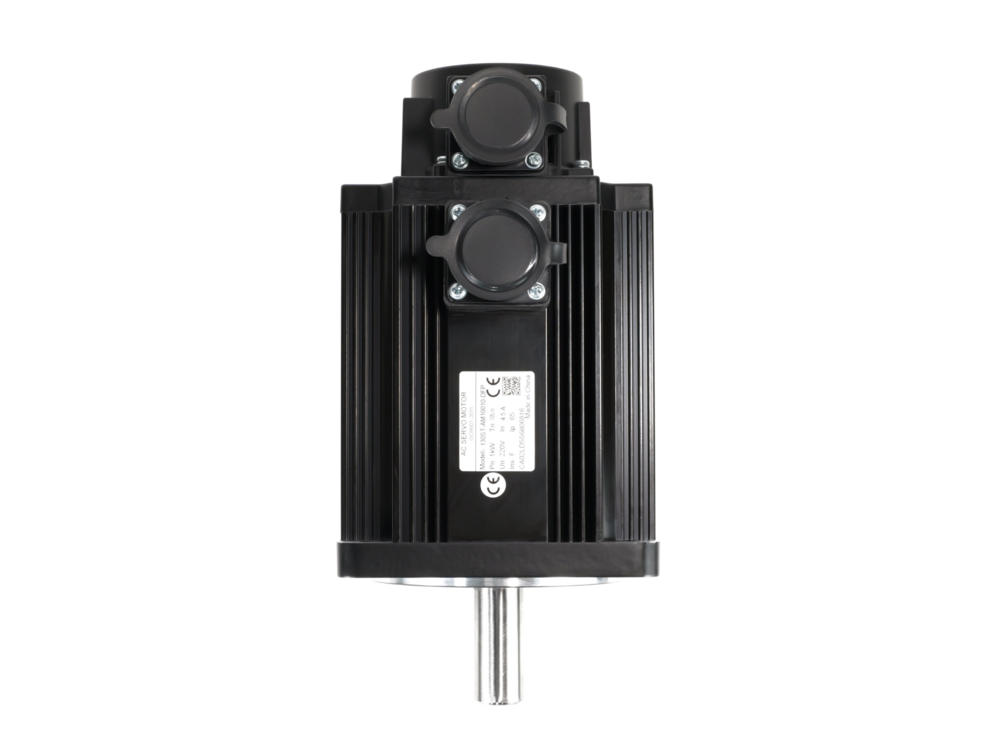

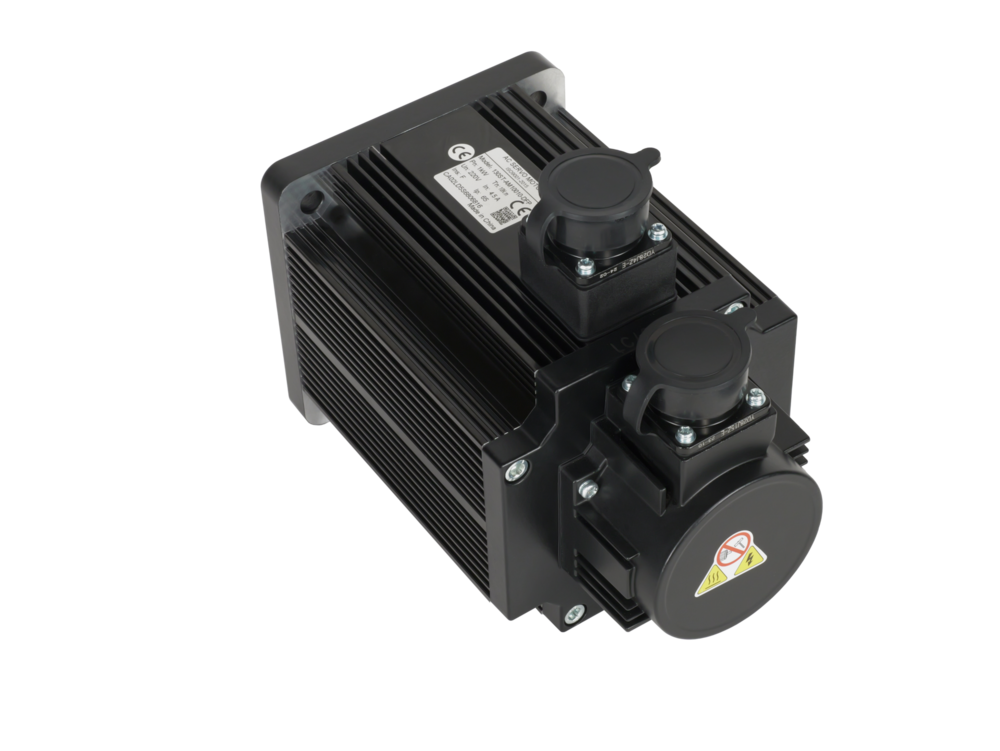

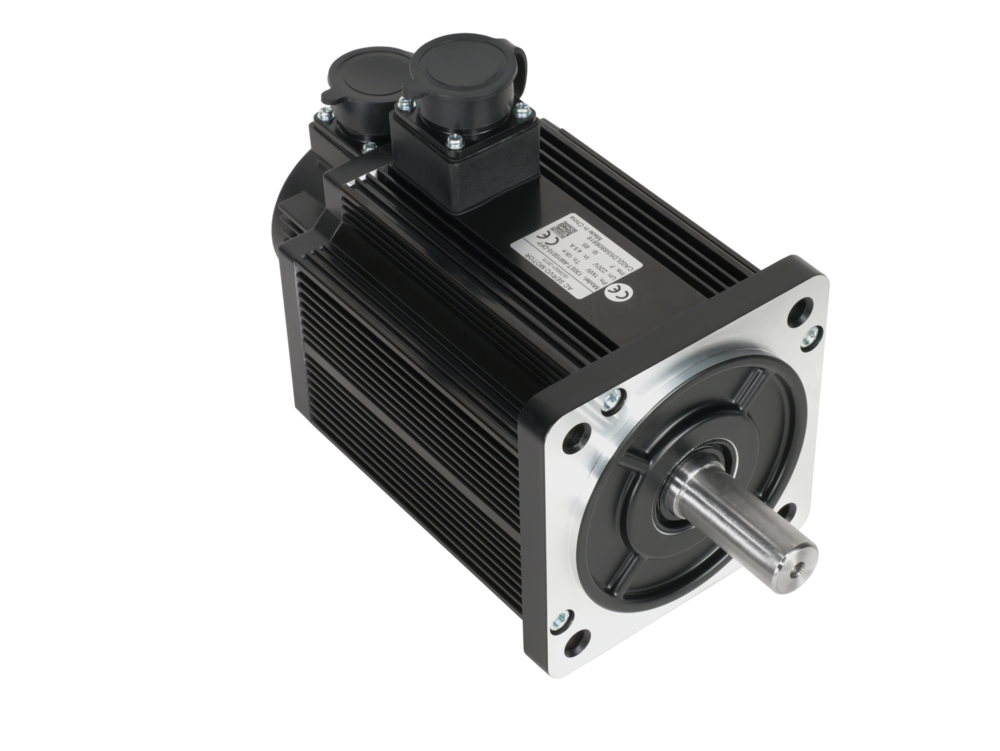

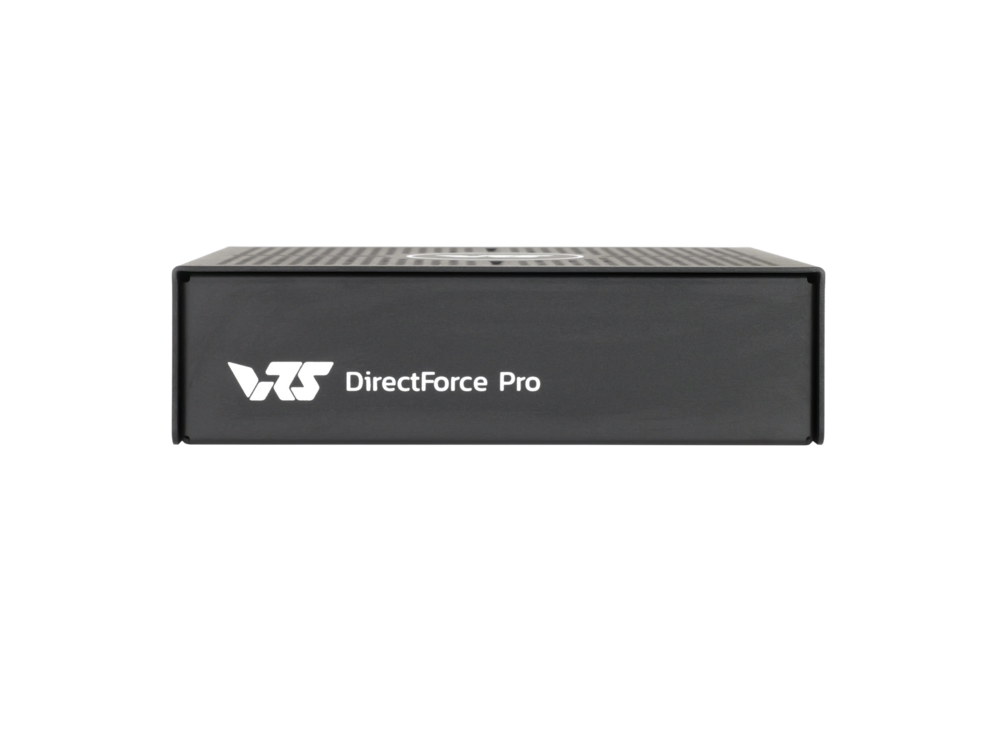

The VRS® DirectForce Pro Wheel Base consists of the VRS® controller, the 20Nm Small MiGE motor, 3m motor cables, high quality USB cable and AC power cord.
- Platform: PC
- FFB Drive System: Direct Drive
- Motor Type: 4-pole MIGE motor
- Communication Method: USB
- Max Wheel Rotation: Software defined, configurable +/- 90° to +/- 1080°
- Peak Torque: 12 Nm
- Peak Power: 400 W
- Input Voltage: 110-220V AC, internal
- USB Refresh Rate: 1000 Hz
- Encoder Resolution: 4194304 (22-bits)
- Indicator: Yes (2 x LEDs on RJ45 connector)
- App Functions: Supported
- Quick Release: Supported

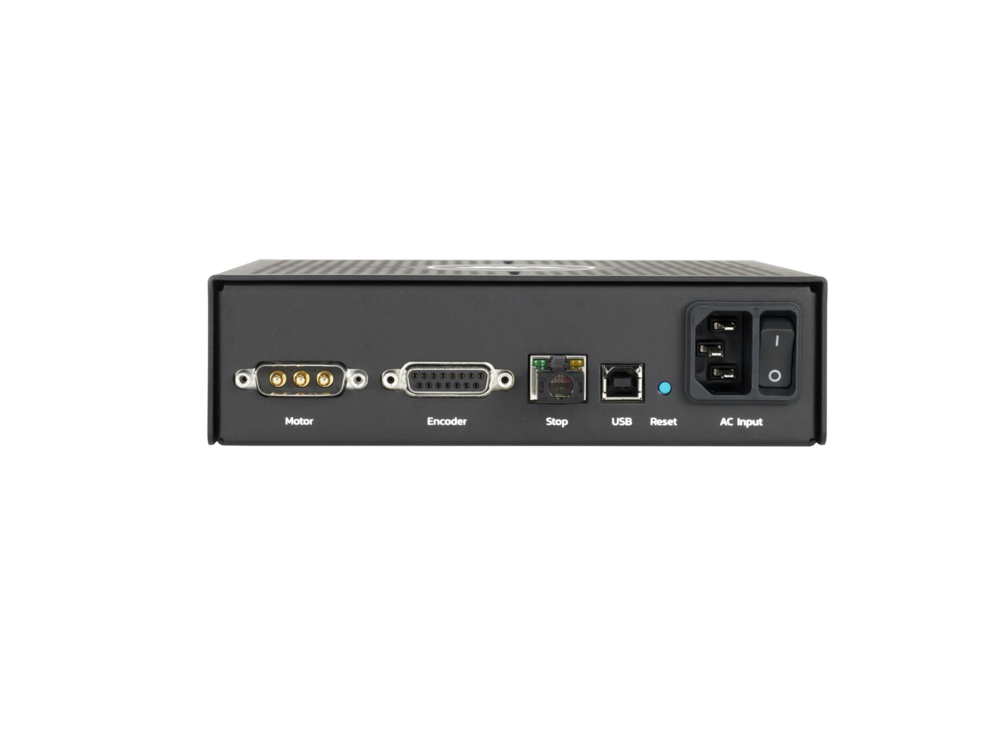

- Connection Ports: Power DC input, USB B, RJ45 safety stop connector
- Mounting Method: Front mount

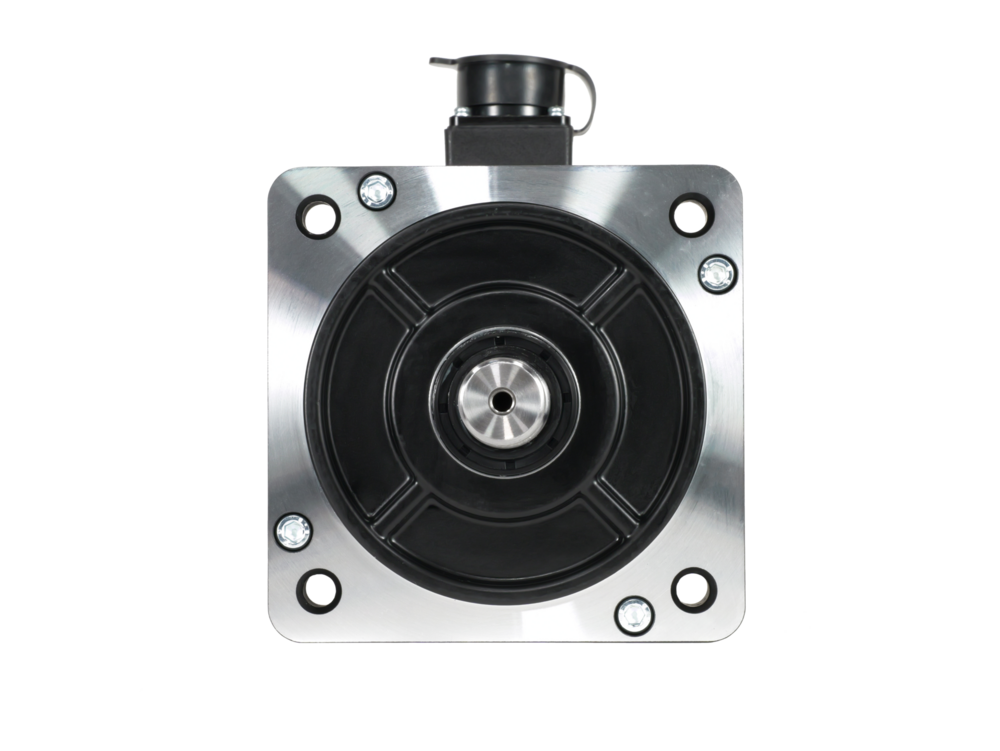

- Mounting Holes: 4 x 9 mm holes on the front flange (not threaded - requires a screw and a nut to attach)
- Firmware Update: Applicable
